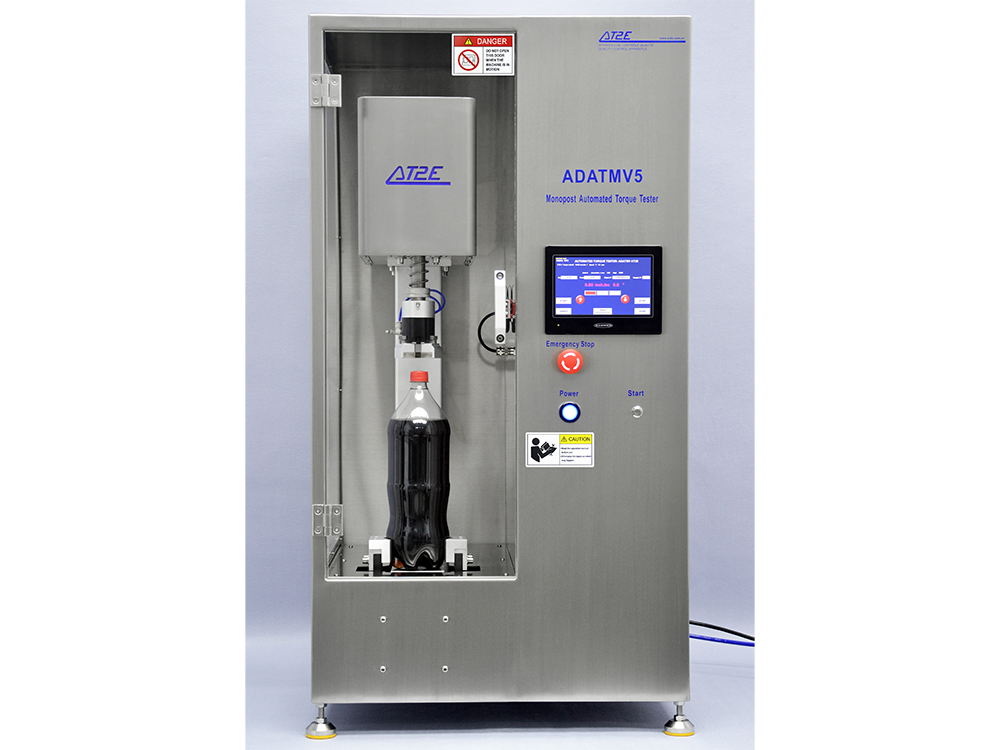

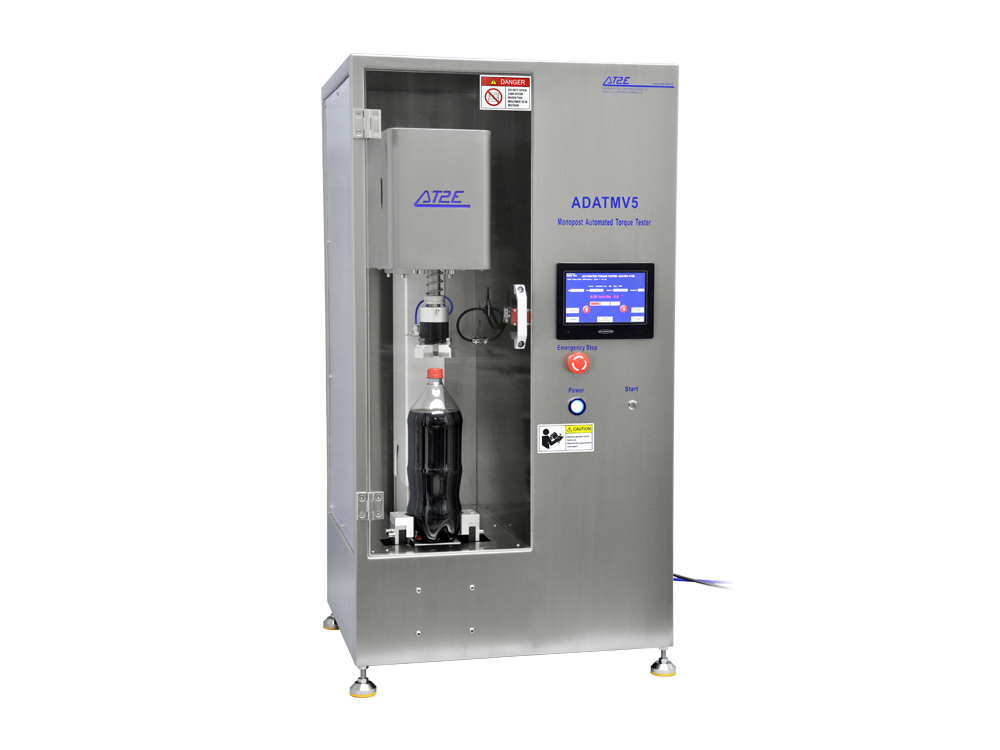

ADATMV5 - Monopost Automated Torque Tester

Full automatic torque tester with servo motor: possible option, top load system, analog curve control, special cycles. Comply with the requirements of FDA - CFR 21-11.

Technical specifications:

• Using by touch screen display

• Measures in opening and closing directions

• Measuring range:  00.00 to 99.00 Kgf.cm

• 7 measuring cycles: Torque closing / Reach position / Release + break / Release + break + over screw / Non-destructive test / Cork extraction test / Removal + breaking + strip torque + close

• Units: Kgf.cm / N.m / Inch.lbs / N.cm

• Rotating angle & speed adjustable under certain cycle

• Accuracy: ±0.5 % of full scale

• 30 products memorization

• 10 thresholds (limits) option

• 10 operators memorization

• Configuration by protected password (administrator)

• Memorization up to 100 measures (transferable to mini-printer)

• Dynamic display: statistics / hour / date

• Display: product name / operator / batch N° / line N°

• 1 RS232 output and 1 printer output (software & printer)

• Language: English, French, Spanish, Chinese, others on request

• Delivered with calibration certificate COFRAC

• AC 220V (AC 110V optional)

Automated part:

• Safety door

• Automatic zero before restarting cycle

• Settable height of column for all samples

• Easy-fast selector for cycles

• Settable speed for opening and closing operations

• Customized cycles

• Special pneumatic chuck available

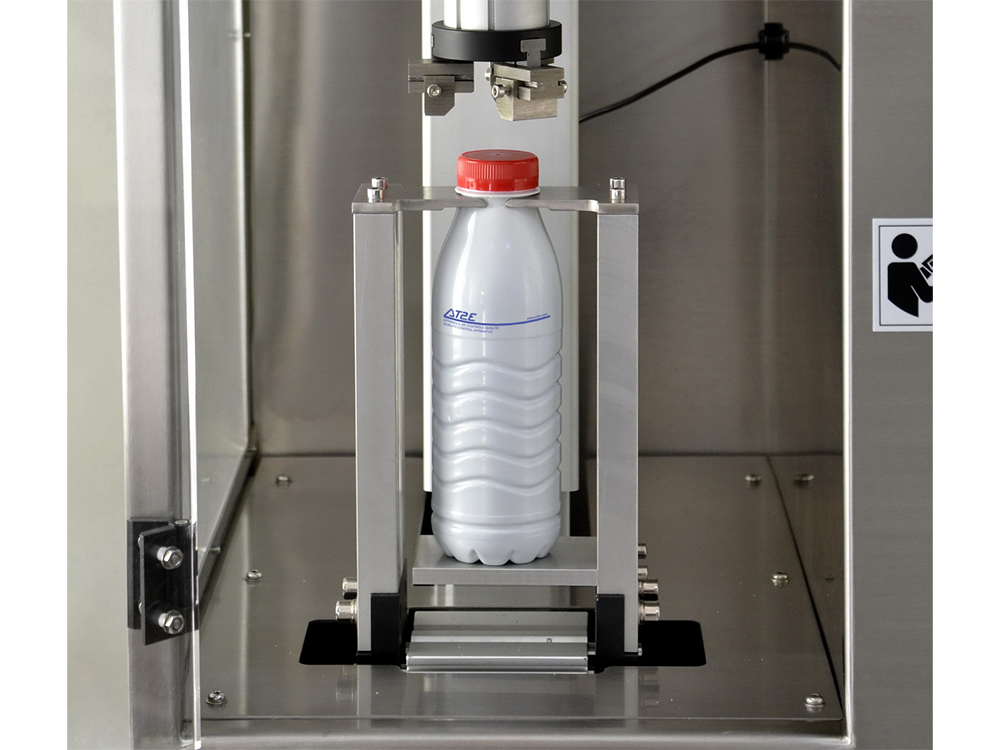

• Special multi format system for both bottle and preforms

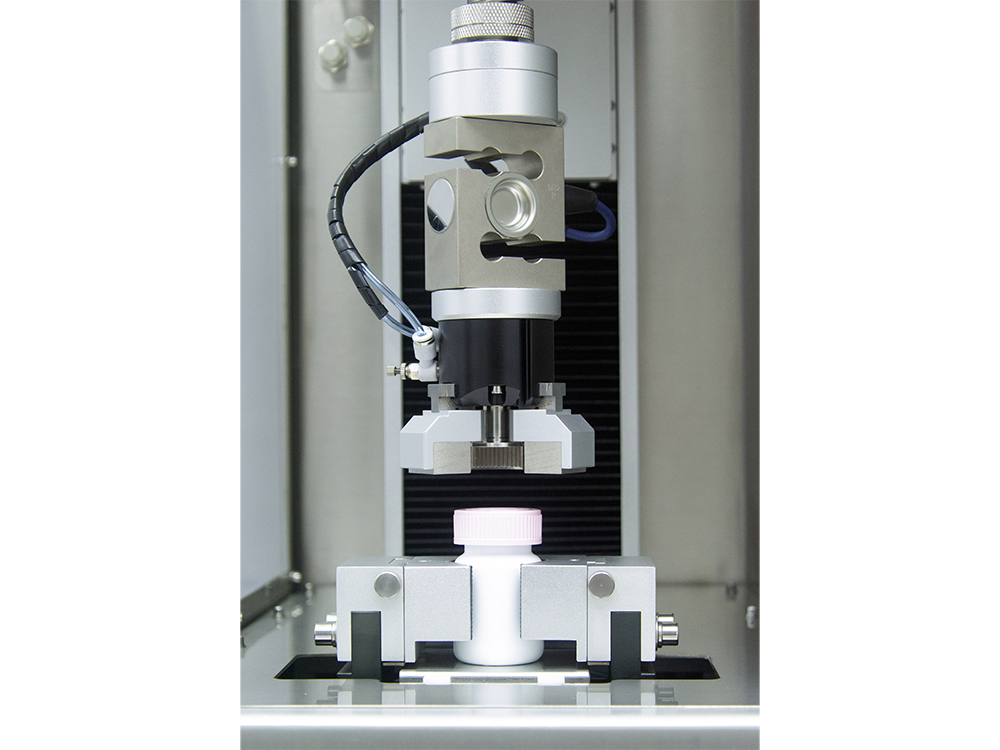

• Dynamometric system

Mechanical specifications:

• Stainless steel Frame

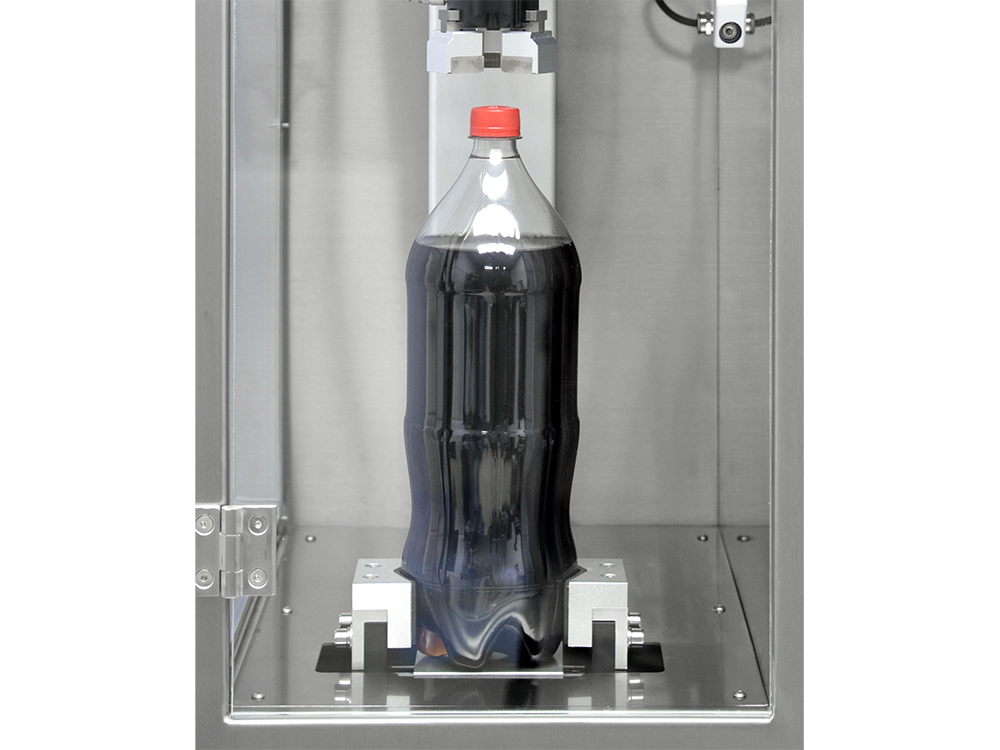

• Choice of measuring chucks: Beverage / Cosmetic / Pharmacy

• Dimensions: 610 (L) x 560 (W) x 1140 (H) mm

• Weight: 94 kg

• Mini printer

• QUALITORQ Software

• Customized display & cycles

• Calibration pack

• Dynamometric system
