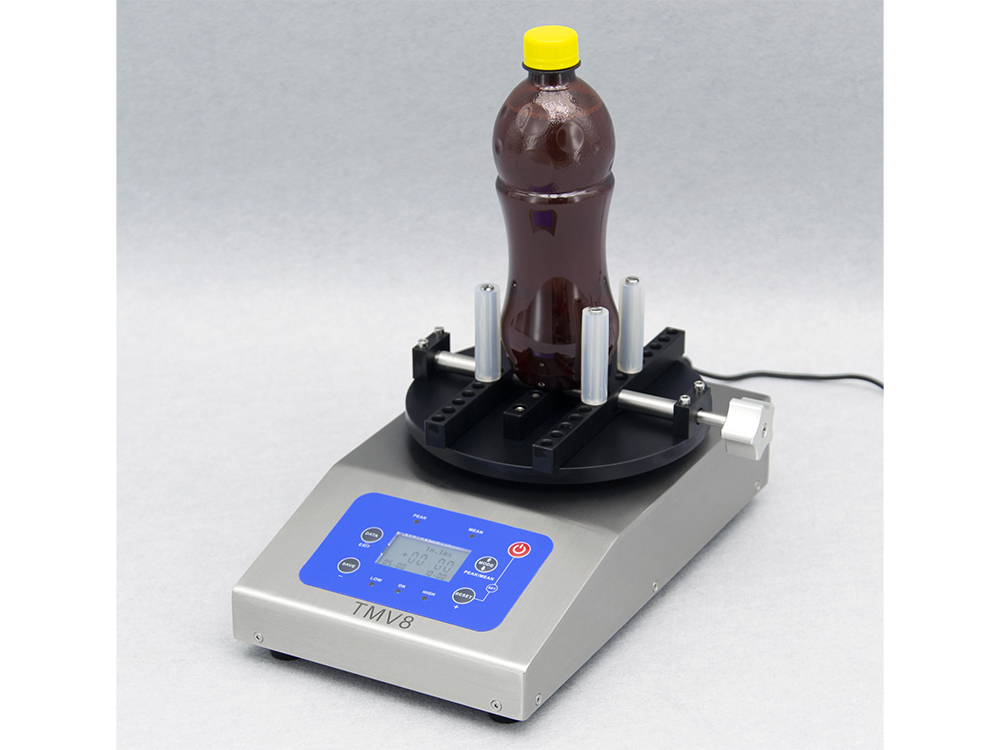

Our torque testers are designed with a special mechanical system for measuring torque which cancels most non-coaxial and top load influences on the measurement. These features cancel most operator induced influences on the measurement for maximum repeatability.
Technical specifications:
• Measures opening and closing directions
• Measuring range: 00.00 to 99.00 Kgf.cm
• Accuracy: 0.5 % of full scale

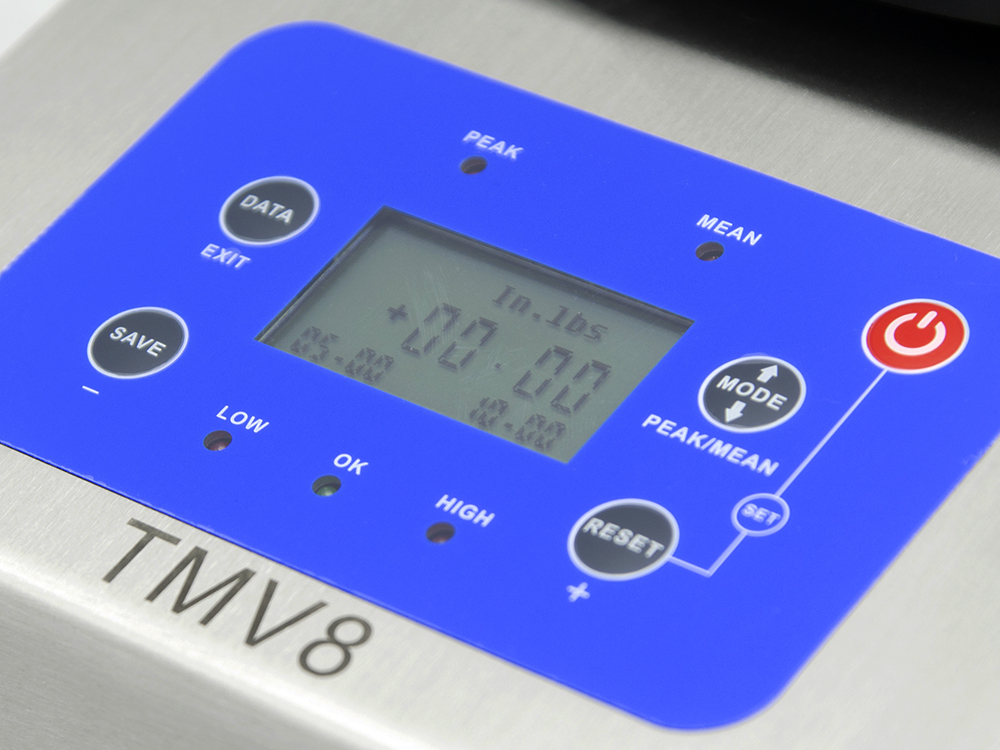

• 2 measuring modes (continue and peak)
• Units: Kgf.cm / In.lbs / N.m / N.cm
• Storage and print up to 999 measurements
• Data record: maximum, minimum and average value
• Display the given torque threshold
• RS232 for mini-printer
• Delivered with calibration certificate COFRAC
• AC 110 - 240 V 50/60 Hz
• Transportation case
Mechanical specifications:
• Stainless steel frame

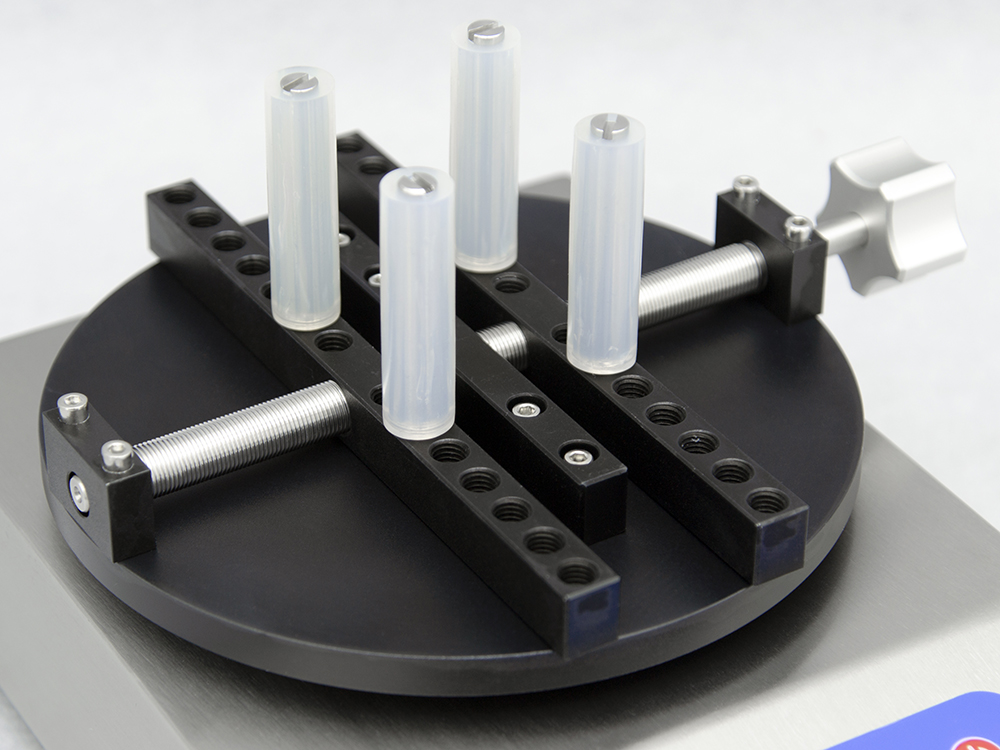

• Measuring table: Agro table (sample range 25 - 155 mm, other range by order)
• Dimensions: 320(L) x 215(W) x170 (H) mm
• Weight: 8 kg Optional parts:
• Easy / Safe opening bloc
• Mini printer
• Calibration pack
• Battery
