Internal pressure resistance testing instrument for aerosol cans, both 3-pcs and mono-block aerosol cans are applicable. PLC integrated and touching screen control, easy operation.

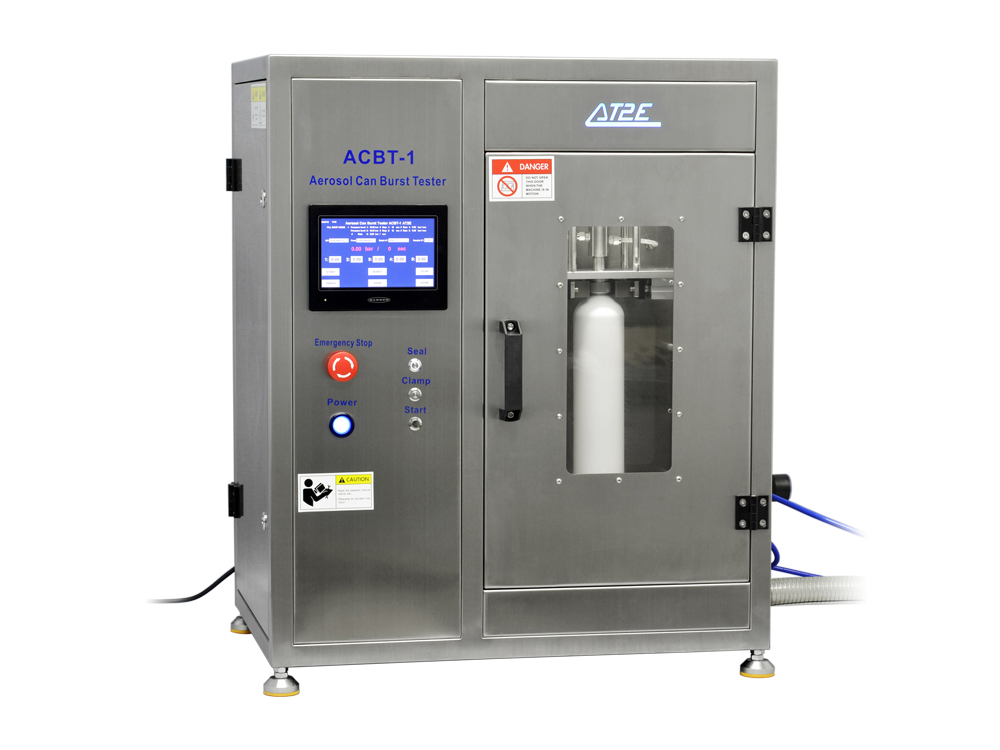

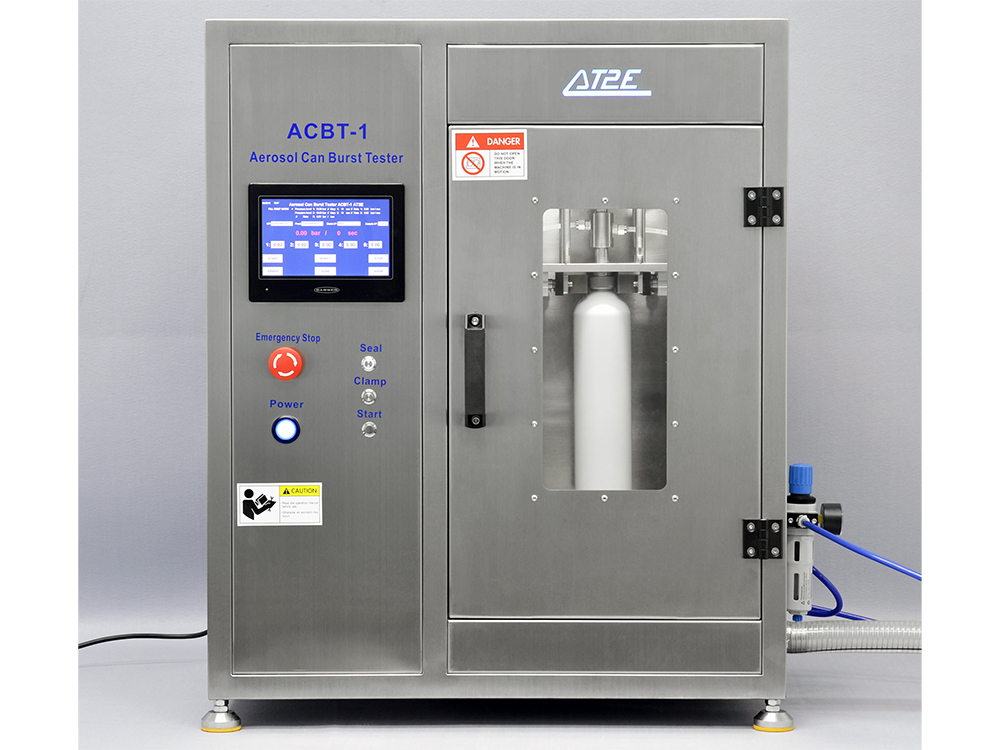

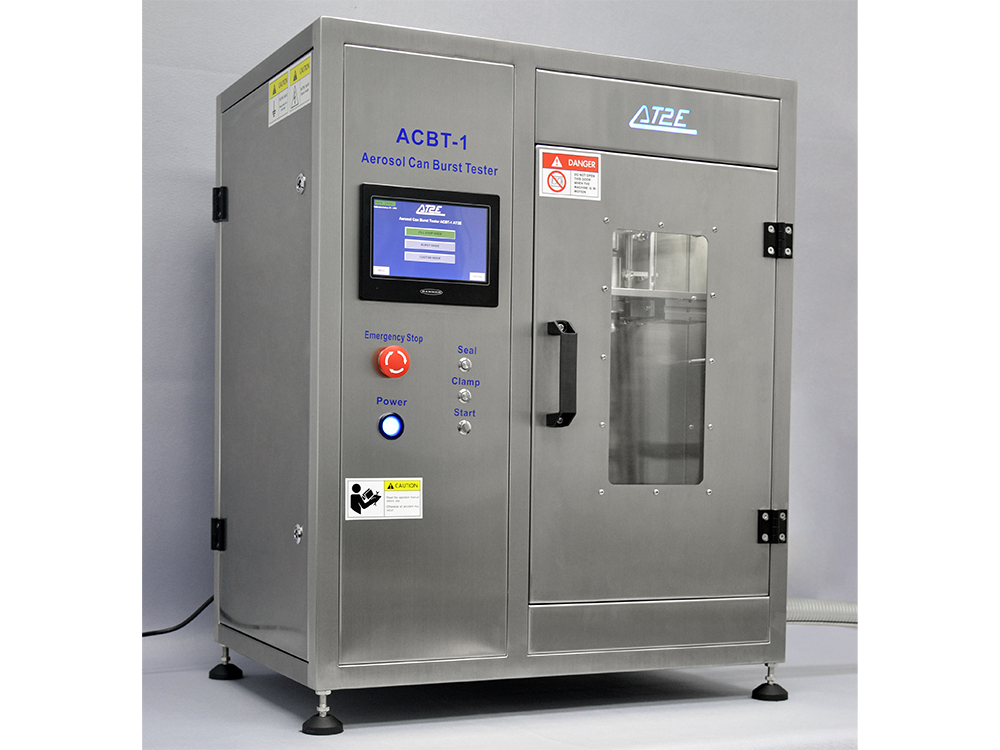

The ACBT-1 is an instrument for testing the internal pressure resistance of aerosol can (for both 3-pcs aerosol can and mono-block aerosol can). It has been widely used by the aerosol can manufacturers and users. It offers an important technical reference to the manufacturers for maintaining or improving the product quality and performance.
Characteristics:
PLC integrated & High resolution touch screen control
Three test cycles (Fill ramp mode, Burst mode and Custom mode) satisfies different test request
Easy operation
Easy sample installing with auto clamping and water filling system
Linear pressurization
Can store 10 operators and 30 products
User defines the product lot number and sequence number
Review the real-time testing curve
Stainless steel design ensures the durability of tester
Advanced safe door design ensures the safety of operator during a test
RS232 output
Technical specifications:
Testing range: 0-40 bar
Resolution: 0.01 bar
Accuracy: ±0.5% F.S.
Unit: bar / psi
Sample range: 25.4 (1") aperture, standard 3-pcs and mono-block aerosol can
Air supply: 5 - 8 bar
Output: RS232
Power: AC 220V (AC 110V optional)
Dimension: 730 × 500 × 860 mm
Net weight: 80 kg
Mini printer
QualiBurstPlus professional software

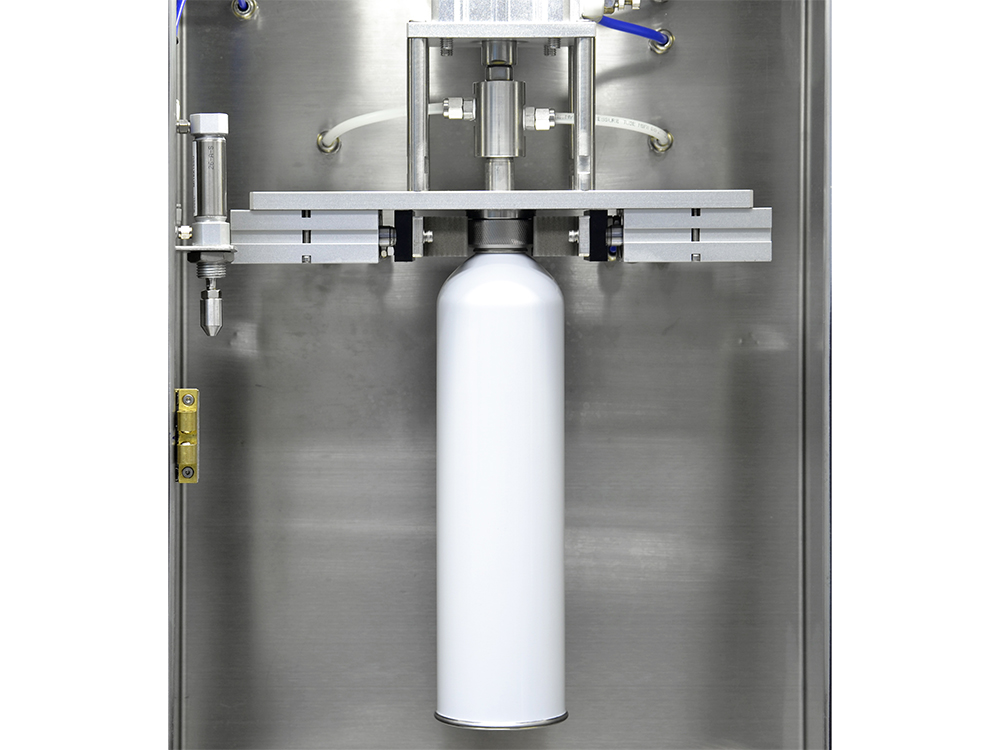

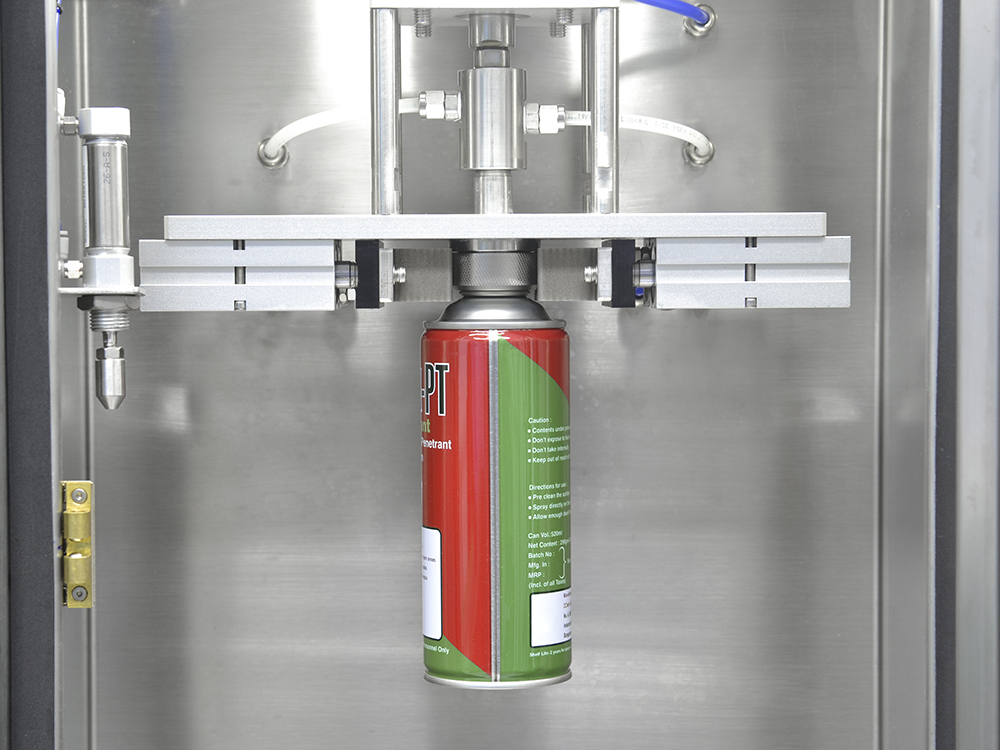

Install the can sample under the affusion head and seal the sample
Close the safety door
Press the start button to start the test
The affusion head will fill the sample automatically and start to pressurize when the bottle is full filled
Pressurize the sample till the cone deforms
Keep pressuring till the dome deforms
Keep pressurizing till the can bursts
The deform and burst value will be recorded automatically and display on the screen
Stop pressurizing
Open the door and take out the sample
