For PET bottles - Simulating filling process

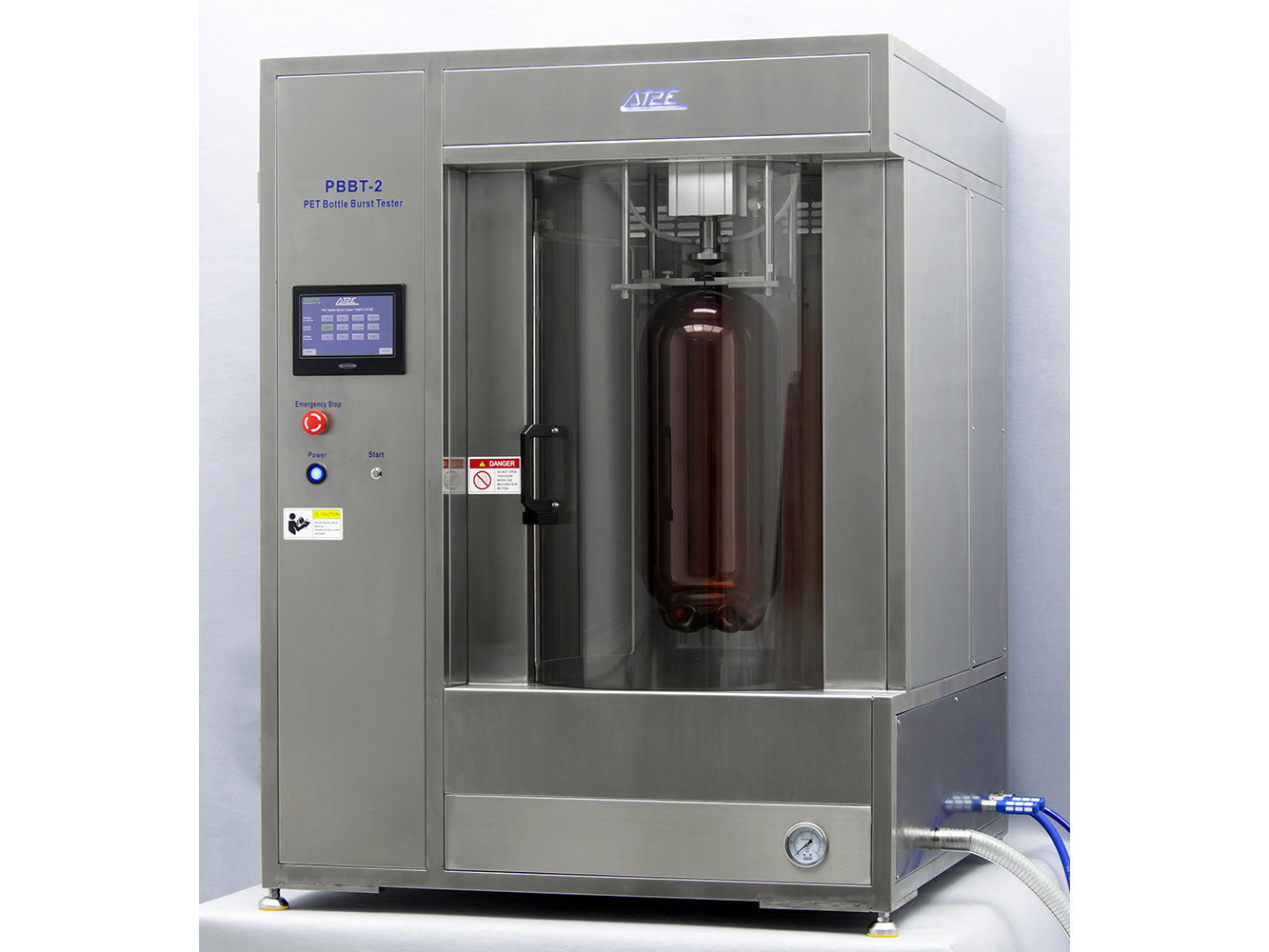

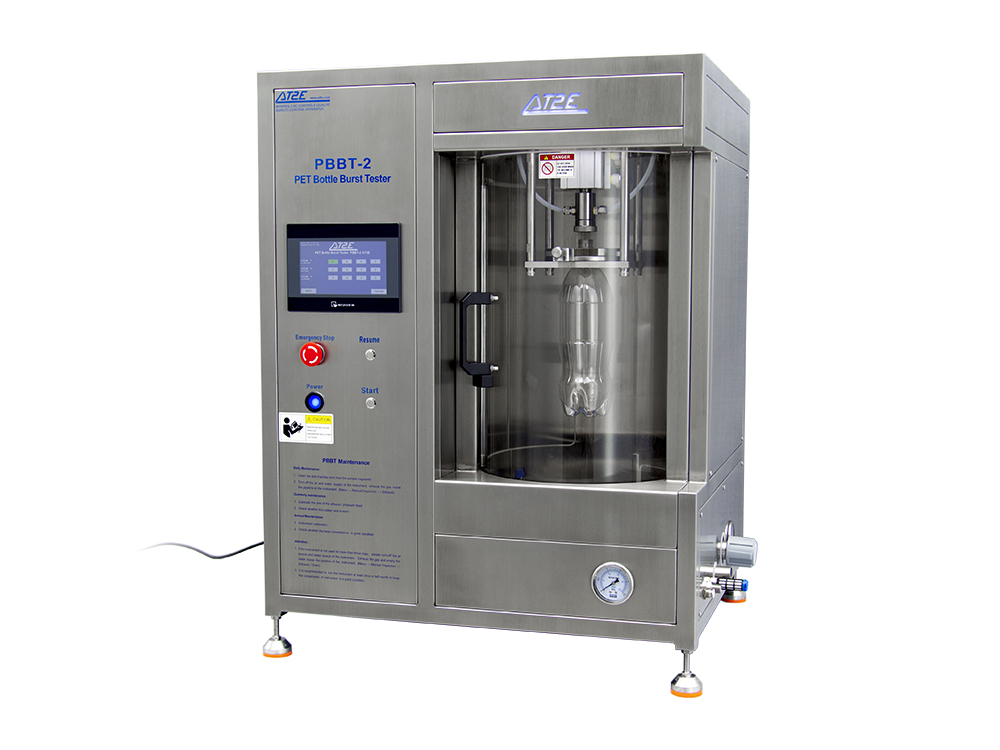

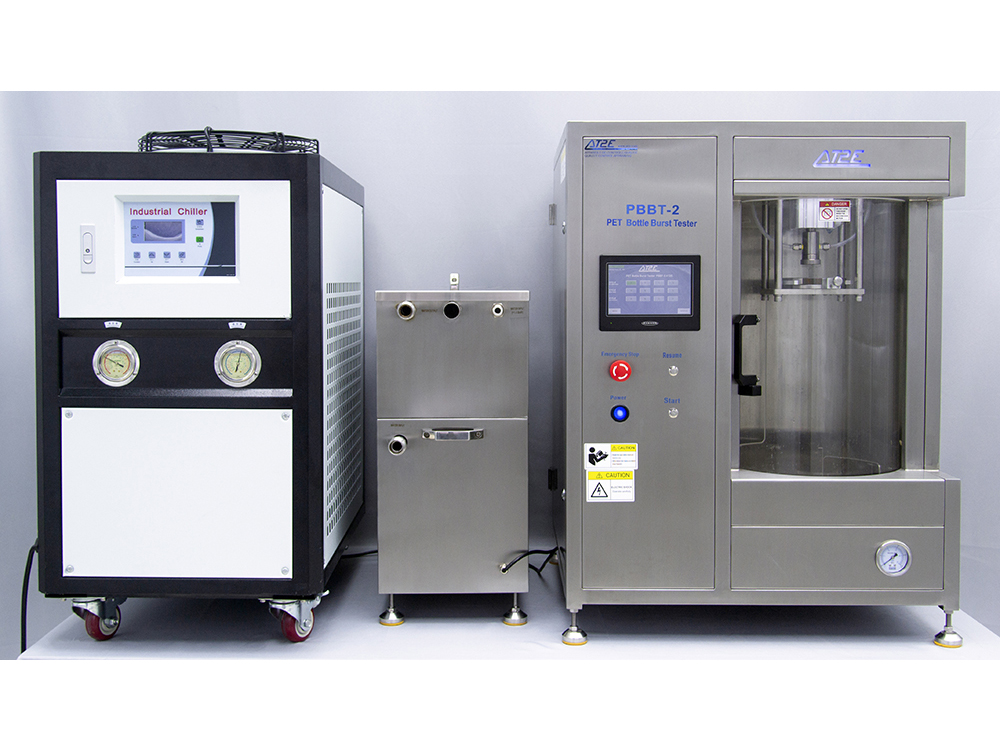

PBBT-2 PET Bottle Burst Tester is a specialized test equipment for testing the internal pressure resistance of PET bottles. It’s designed in accordance with the three international test methods which are commonly used. Users can choose the test method basing on their requirement. The PBBT-2 is capable to test the capacity of resilience under certain pressure or the rupture test of the PET bottle.
Through the reproduction of the pressurization, the process has been linearized and it increases to the predetermined point or the point of bursting.
After selecting the test program, the cycle will start automatically depending on the settings. The touch screen displays the pressure value in real time and record the maximum pressure and burst pressure.
Optional part water recycling system could provide way of saving water and avoiding the unsteady pressure of tap water which may influence a normal test.
Additional booster could be chosen. It may help the PBBT-2 free of high pressure source.
For PET bottles - Simulating filling process
PBBT-2 PET Bottle Burst Tester is a specialized test equipment for testing the internal pressure resistance of PET bottles. It’s designed in accordance with the three international test methods which are commonly used. Users can choose the test method basing on their requirement. The PBBT-2 is capable to test the capacity ofresilience under certain pressure or the rupture test of the PET bottle.
Through the reproduction of the pressurization, the process has been linearized and it increases to the predetermined point or the point of bursting.
After selecting the test program, the cycle will start automatically depending on the settings. The touch screen displays the pressure value in real time and record the maximum pressure and burst pressure.
Optional part water recycling system could provide way of saving water and avoiding the unsteady pressure of tap water which may influence a normal test.
Additional booster could be chosen. It may help the PBBT-2 free of high pressure source.
Characteristics:
Standard equipment for the PET bottle industry.
3 international test methods are available
PLC integrated & Touch screen control

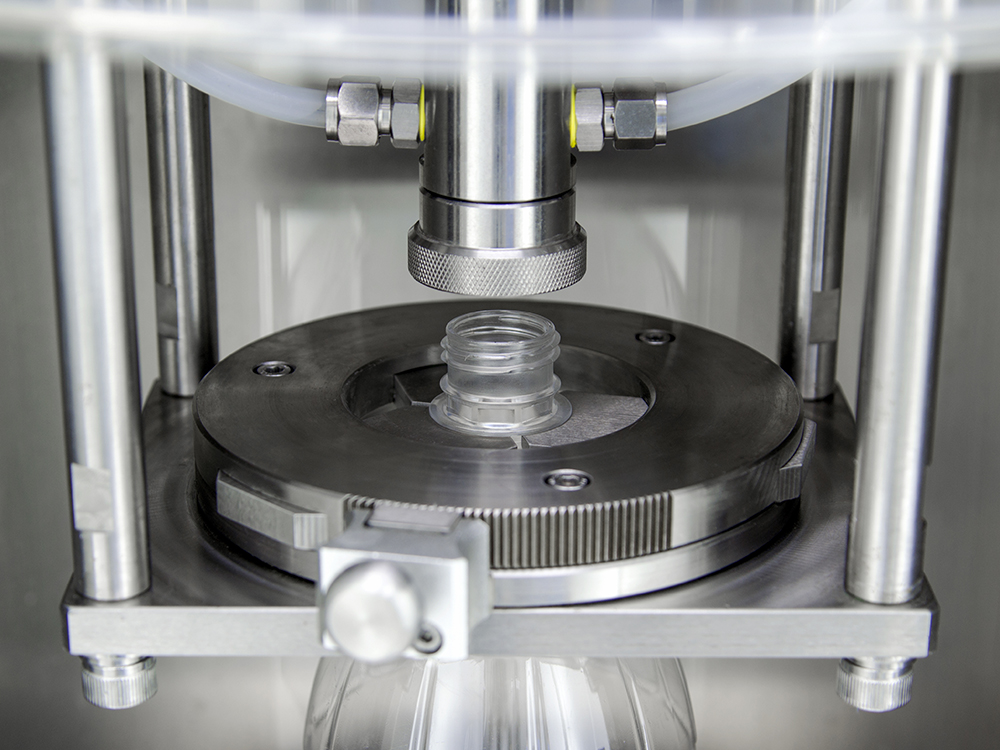

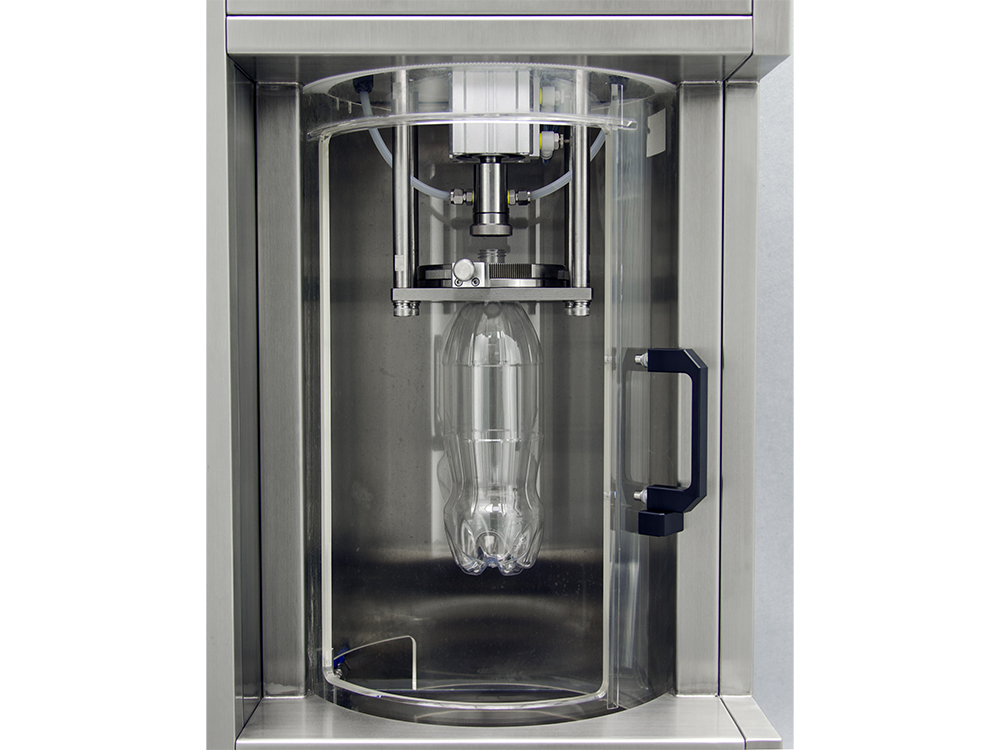

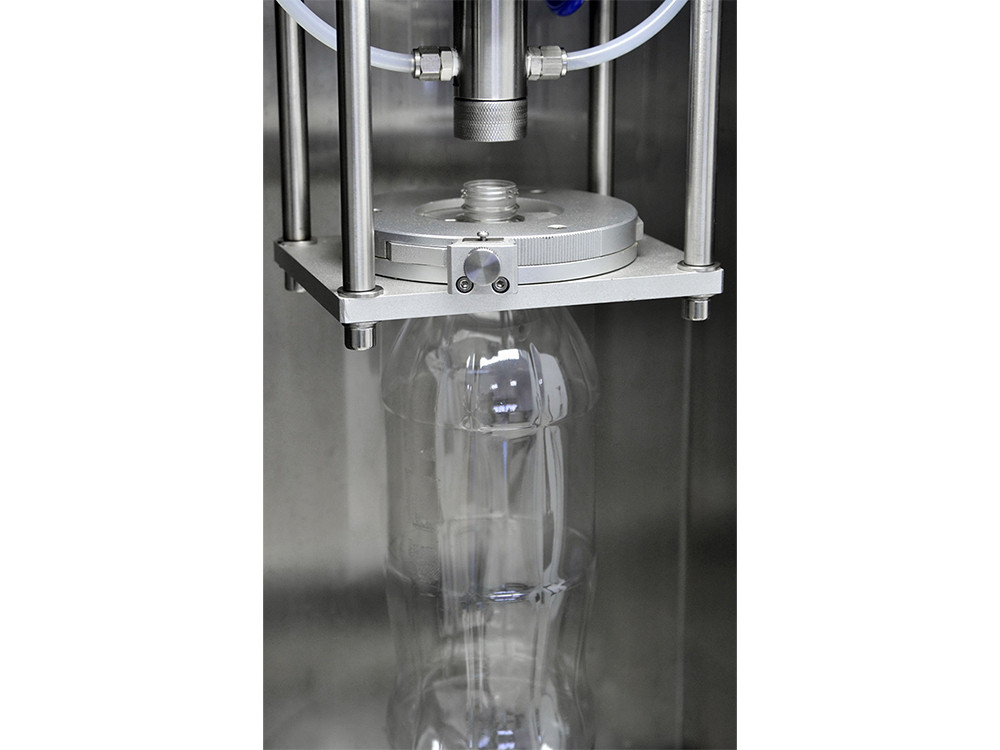

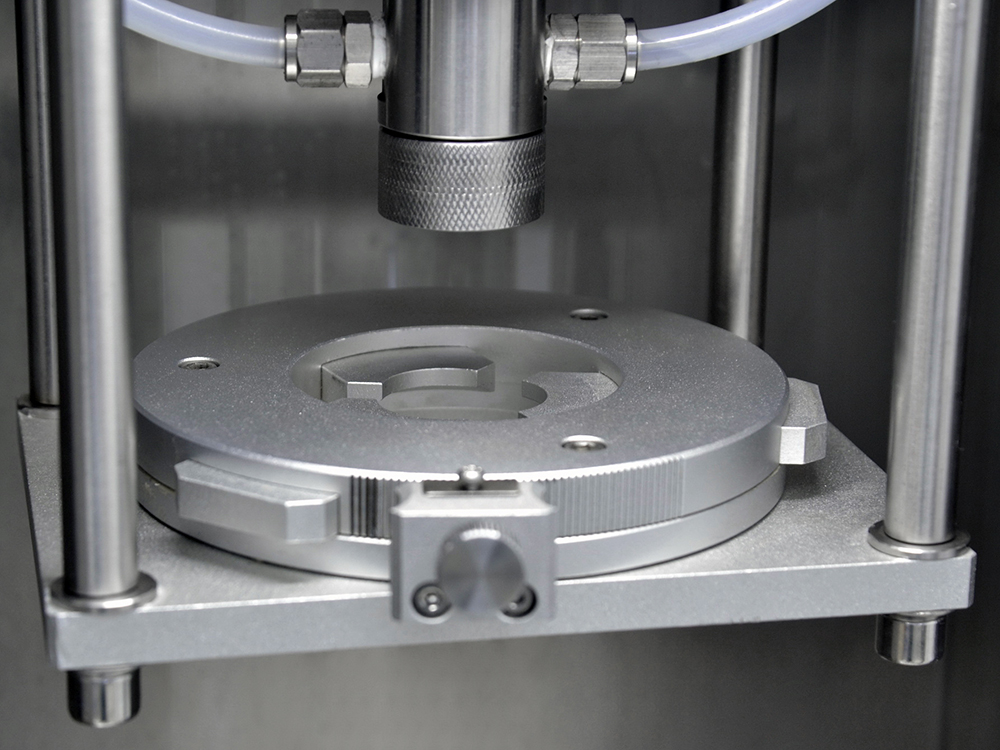

Automatic clamping and filling system
Can store 10 operators and 30 products
User defines the product lot number and sequence number
Display curves of pressure and volume expansion during the test
Monitors and records the temperature of the water during the test
Applicable to 2.5 L bottle (consult us for bigger size)
Stainless steel design ensures the durability of tester
RS232C data output: connected to either printer or software
Integrated calibration function
Modes details:
Fill ramp mode:
The filling ramp mode is designed to simulate the situation of filling lines of PET bottles. Under this mode, the PET bottles are pressurized rapidly to the initially preset pressure and maintained for a given time (for example 13 seconds). Then continue to increase the pressure with a speed of 0.7 bar/s (speed is settable) until the outbreak of the bottle or reaching the max pressure or volume. Preset parameter includes: initial screening pressure, Hold time and ramp speed.
Burst mode:
Under this mode, PET bottle will be pressurized rapidly to the initially preset pressure and maintained for a predefined period. Preset parameter includes: initial pressure, Hold time and Expansion limit.
Custom mode:
Under this mode, user is able to create the pressure curve to meet the particular conditions of control. Users can define the pressure curve by steps, after the adjustment is made, the corresponding curve will be displayed on the user interface.
Technical specifications:
Measuring range: 0 - 20 bar
Resolution: 0.01 bar
Pressure Unit: bar, psi
Sample range: Up to 3 L bottle (larger by order)
Expansion in volume: Up to 3 L (larger by order)
Power supply: AC 220V (110V optional)
Pressure required: ≥1.5 bar water / 20 bar air source
Temperature range: 0 to 50 °C
Temperature Unit: °C, °F
Rear Panel: RS232 serial output
Language: English / French / Spanish / Portuguese / Polish / Chinese
Dimensions: 770 (L) × 650 (W) × 960 (H) mm
Net weight: 120 kg

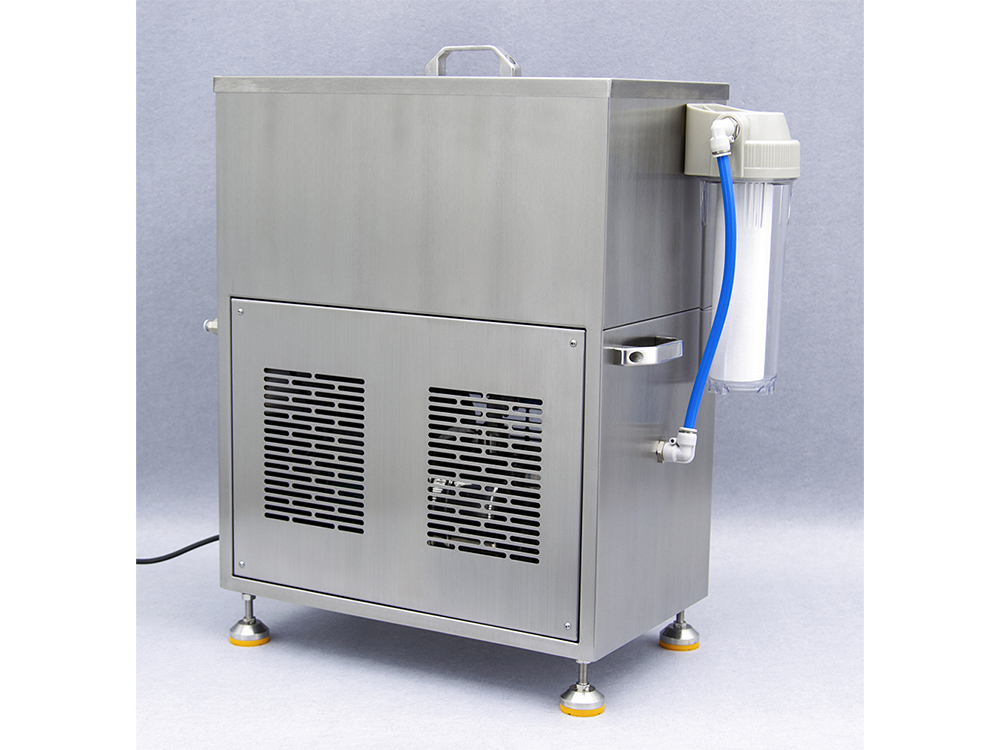

Water recycling system

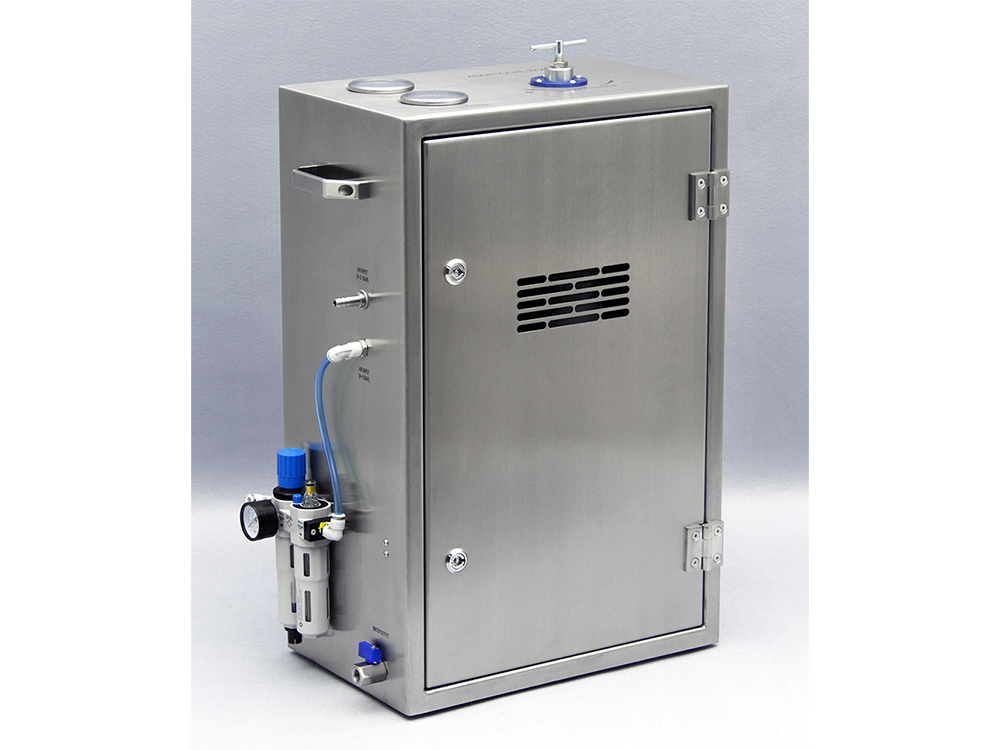

Additional booster
Compatible clamping system
Mini printer
Calibration pack (including high accuracy pressure gauge for pressure calibration / calibration graduated flask / spacer)
“QualiBurst” Software
PABT version with hot water spraying system

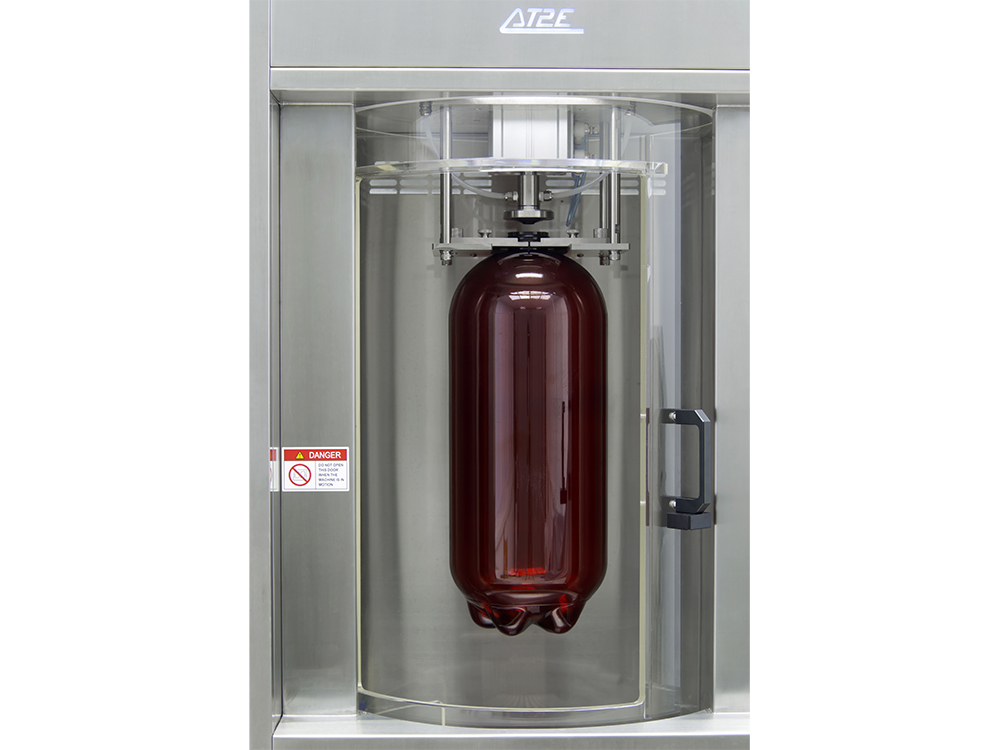

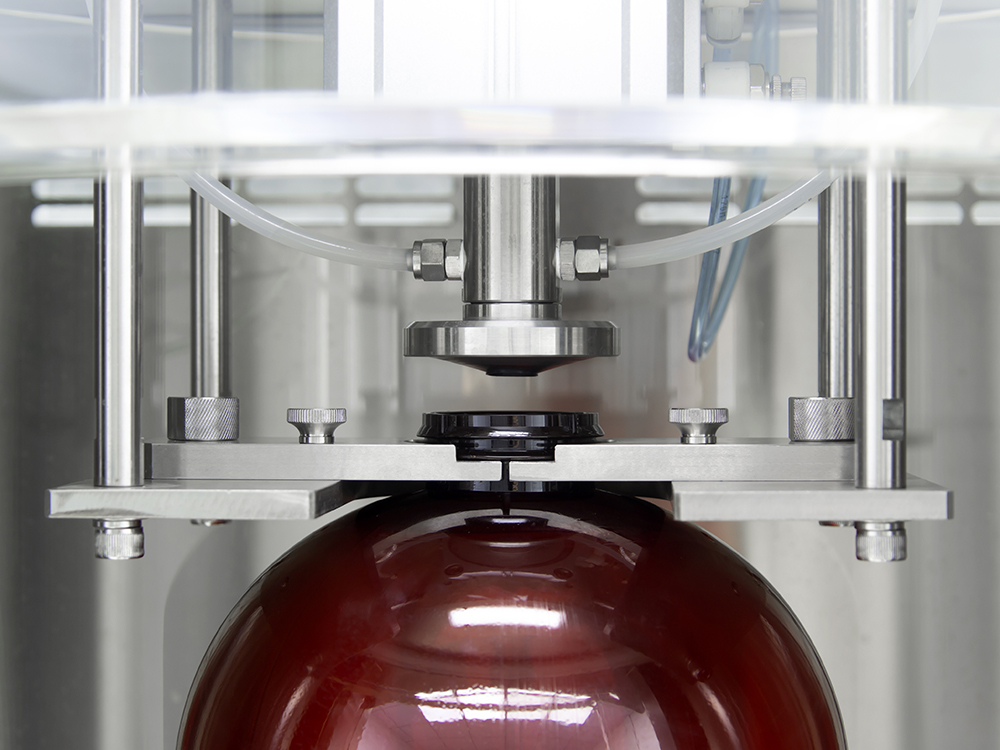

PBBT-2 Keg mode
