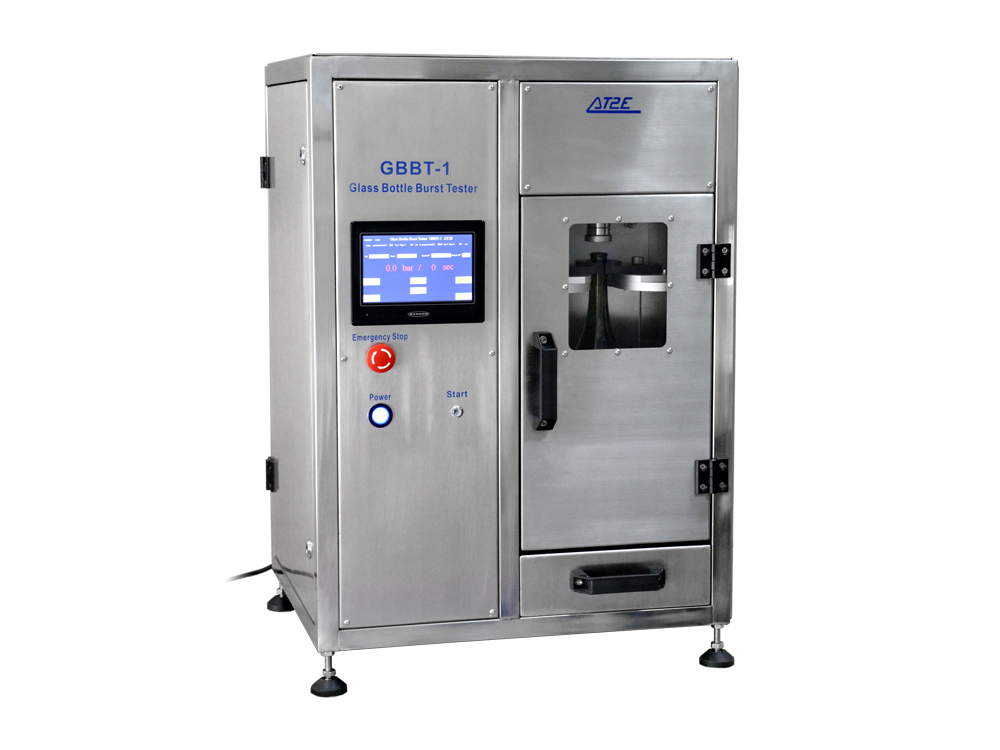

The GBBT-1 is an instrument for testing the internal pressure resistance of glass containers. It has been widely used by the glass container manufacturers and users. As a standard testing instrument for the glass container industry, it offers an important technical reference to the manufacturers for maintaining or improving the product quality and performance.
Designed for easy operation and maintenance, comply with the testing standard of ISO 7458:2004.
The pressure test of containers is made up to a predefined pressure point (trial test) or until destruction.
The GBBT-1 is an instrument for testing the internal pressure resistance of glass containers. It has been widely used by the glass container manufacturers and users. As a standard testing instrument for the glass container industry, it offers an important technical reference to the manufacturers for maintaining or improving the product quality and performance.
Designed for easy operation and maintenance, comply with the testing standard of ISO 7458:2004.
The pressure test of containers is made up to a predefined pressure point (trial test) or until destruction.
Characteristics:
PLC integrated & Touch screen control
User defined test cycle (up to 4 steps of pressure and holding time) satisfies different test request

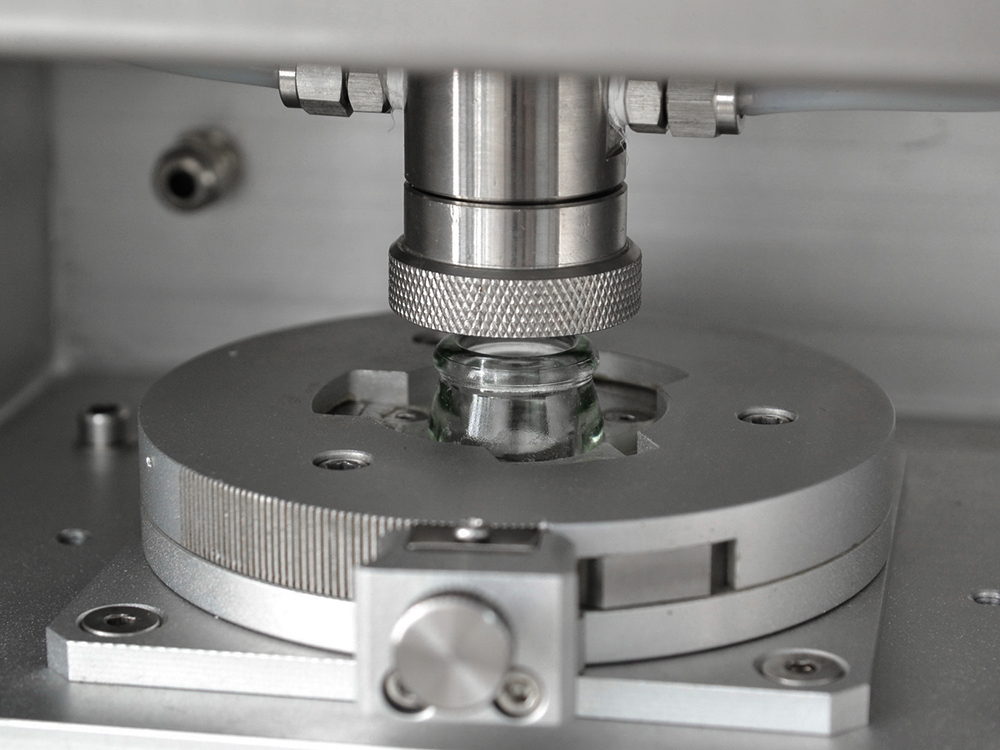

Automatic clamping and filling system
Easy operation

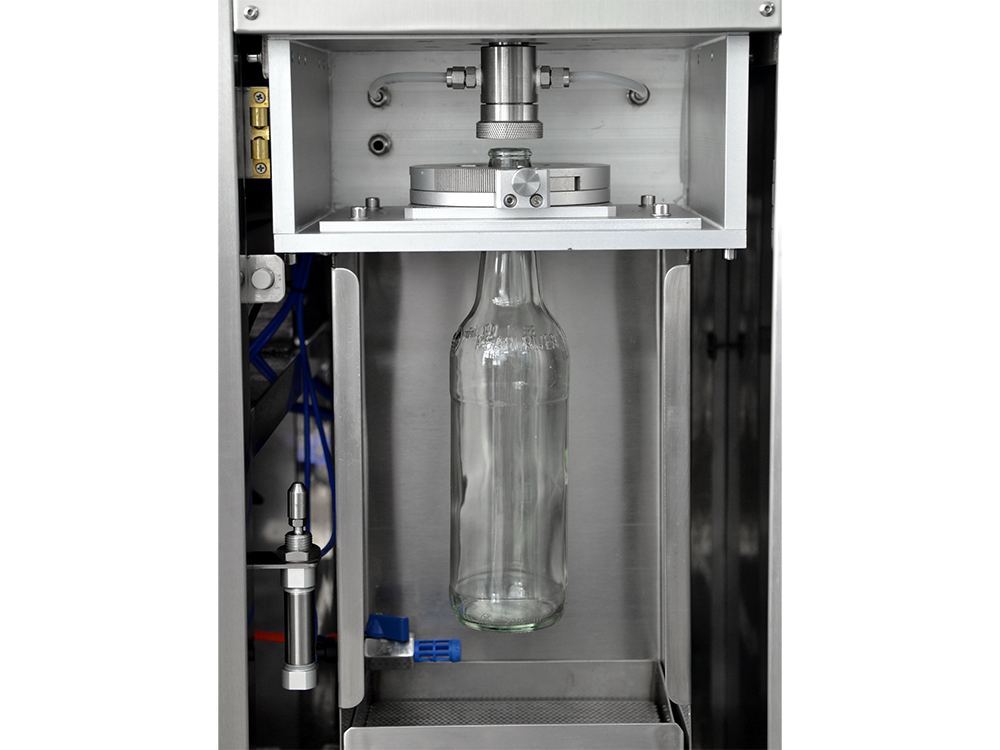

Easy sample installing, with auto clamping and water filling system
Linear pressurization
Can store 10 operators and 30 products
User defines the product lot number and sequence number
Reviews the real-time testing curve
Stainless steel design ensures the durability of tester
Advanced safe door design ensures the safety of operator during a test.

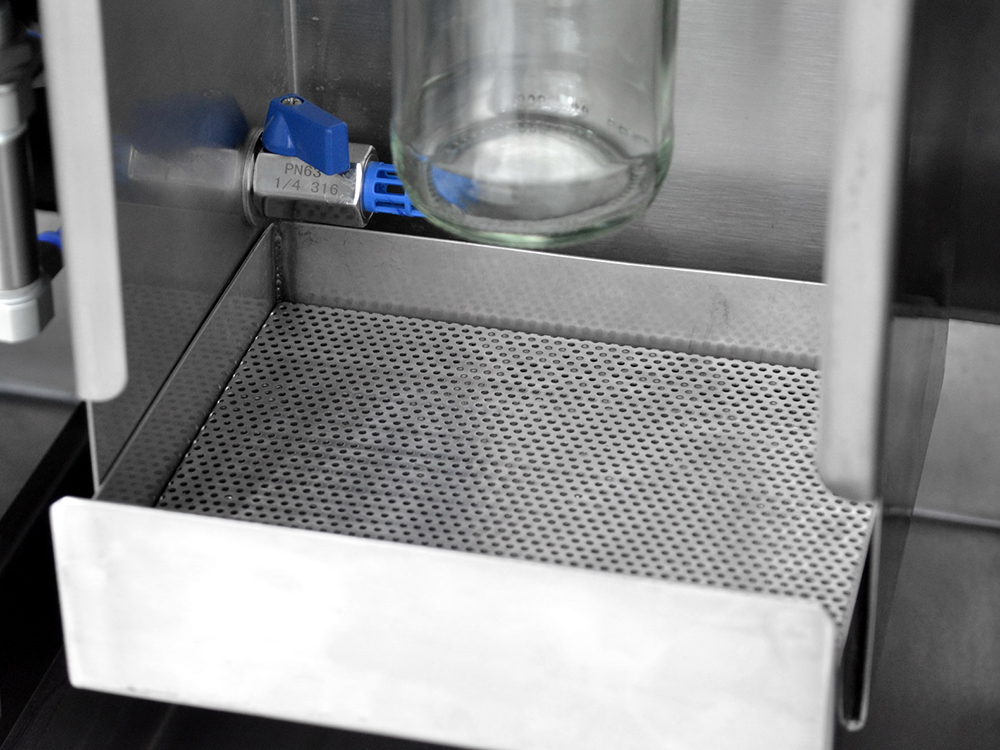

Special trash bin design makes the glass trash collection easily.
RS232 output
Can be connected to either printer or software
Technical specifications:
Measuring range: 0-57 bar (each station)
Resolution: 0.1 bar
Sample range: by order
Power: 115 V / 230 V, 50-60Hz
Dimension: 620 (L) × 570 (W) × 820 (H) mm
Net weight: 70 kg
Compatible clamping system
Professional Software for GBBT-1
