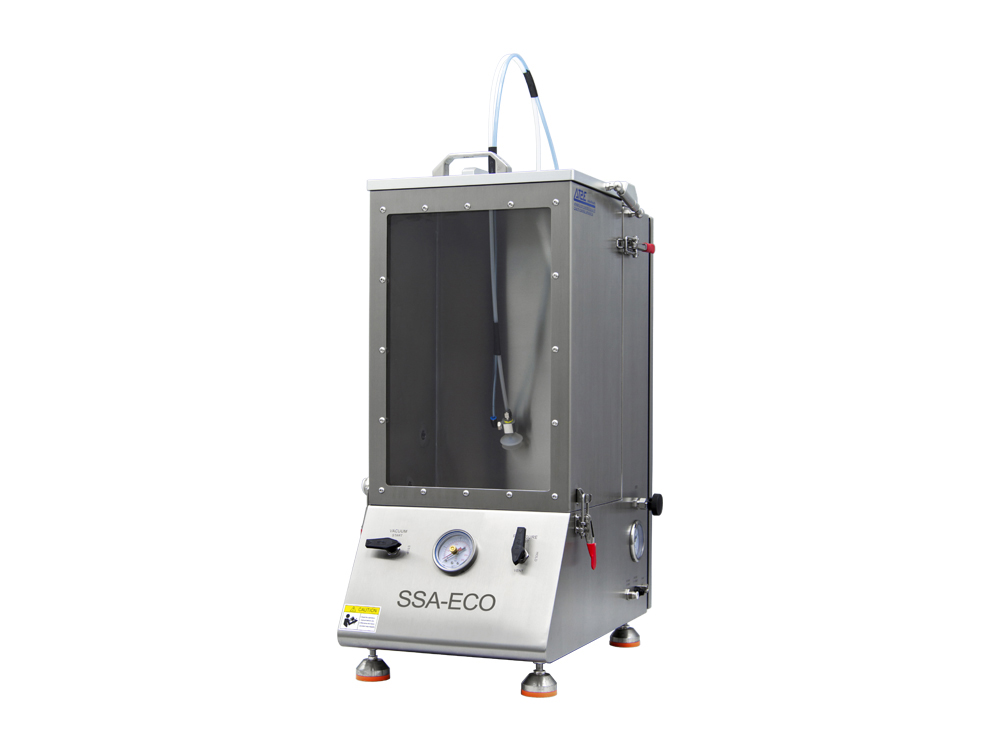

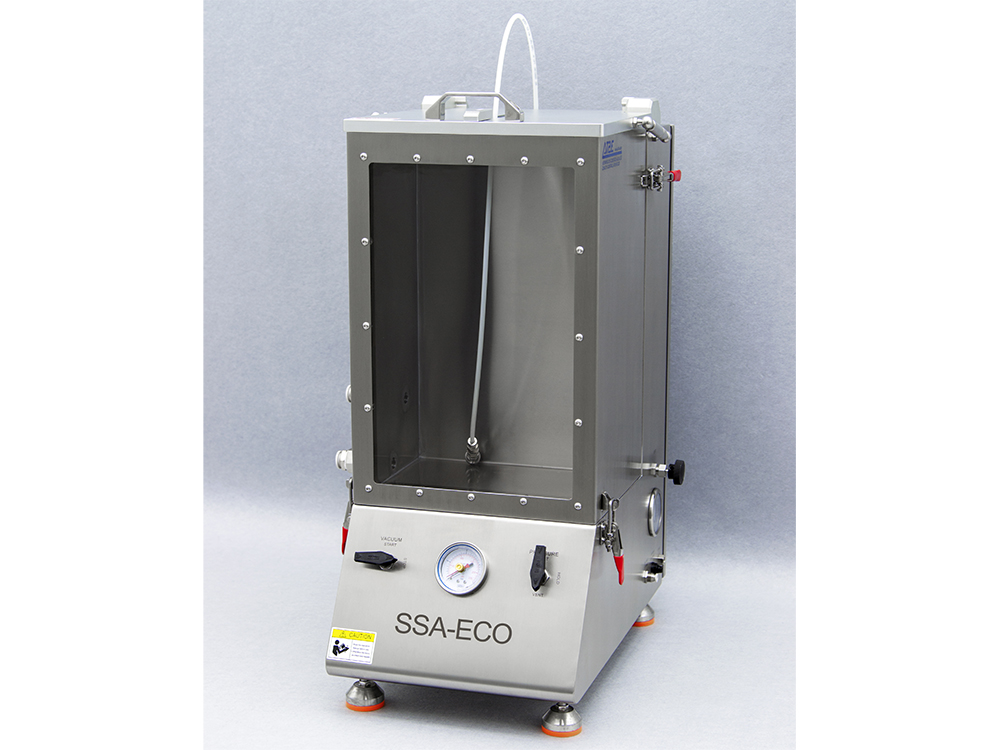

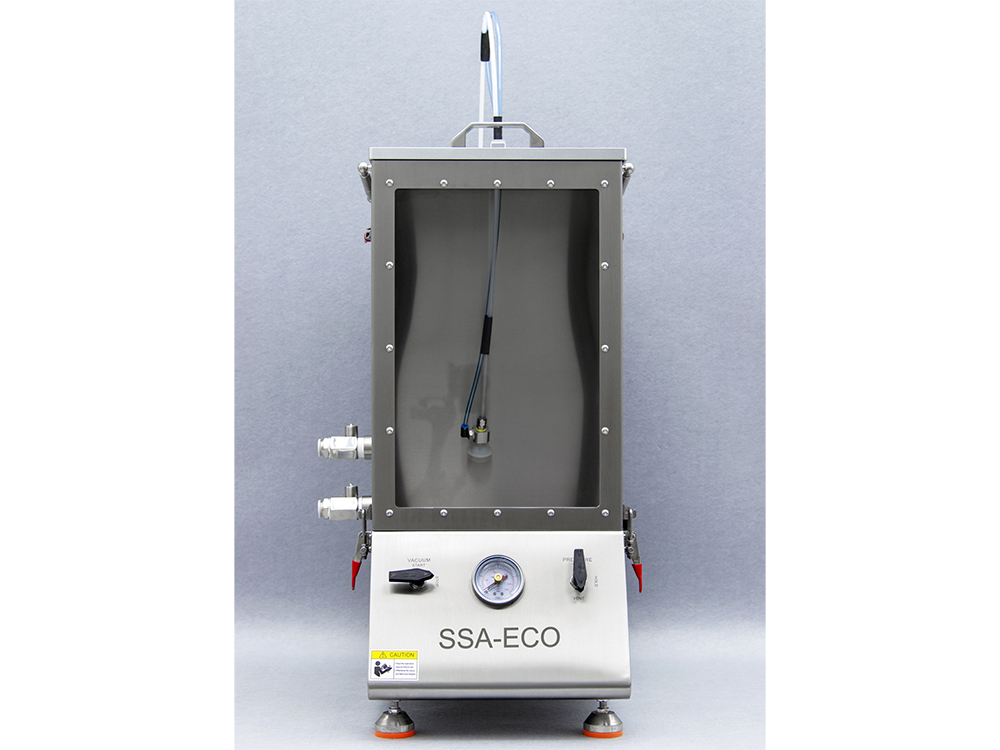

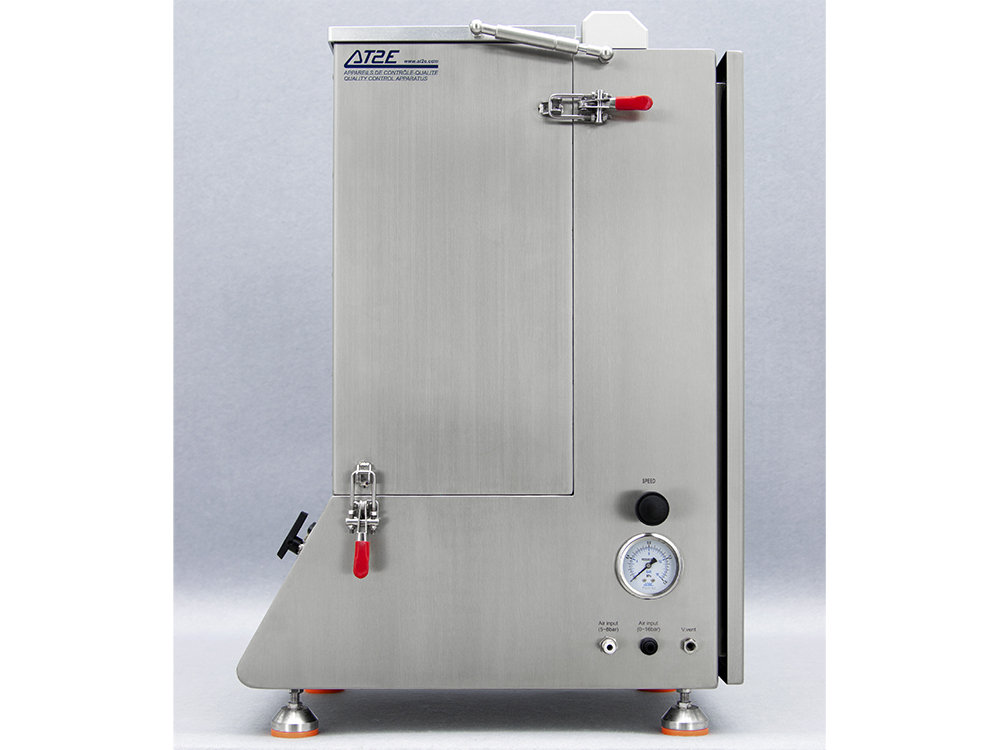

AT2E SSA-ECO secure seal analyzer is for testing the secure seal performance of products. With AT2E patent needle, it makes the installation and piercing very quick and easy in any medium. By vacuum technology and special design, the needle uses a function of self-holding on the tested products. However, the SSA-ECO can be compatible with using the needle of the classic Secure Seal Tester (typical screwed needle). It’s stainless steel design makes it resistant of any explosion during the test and ensures the safety of the operator.
Technical specifications:
Measuring range: 0 to 16.00 bar
Resolution: 0.5 bar
Tests on bottles, cans and preforms

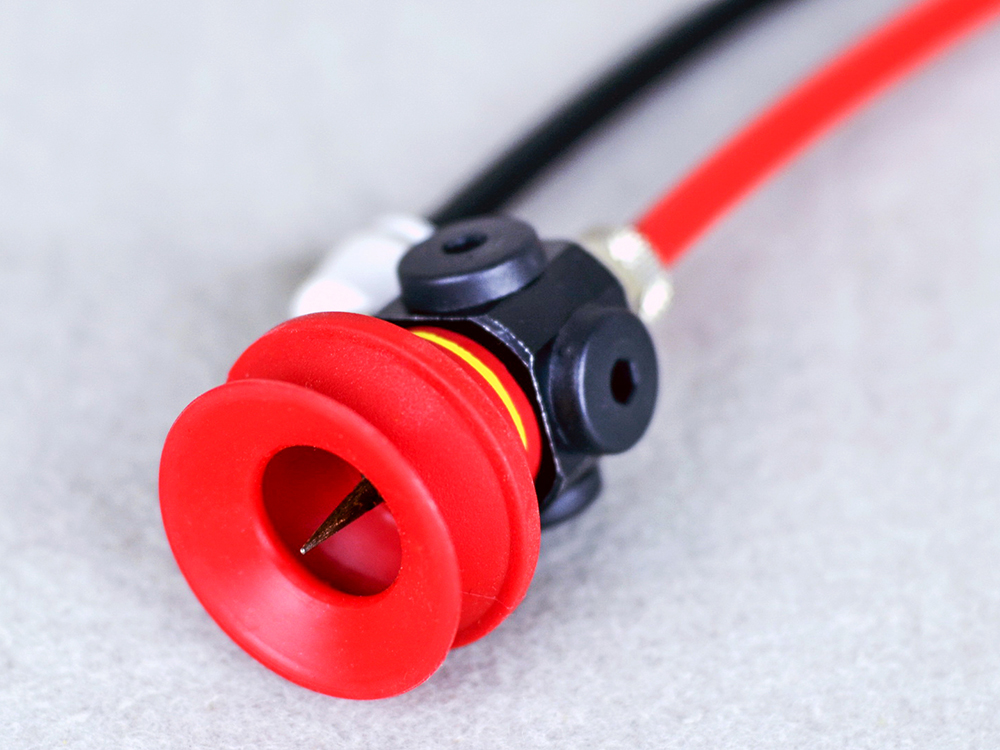

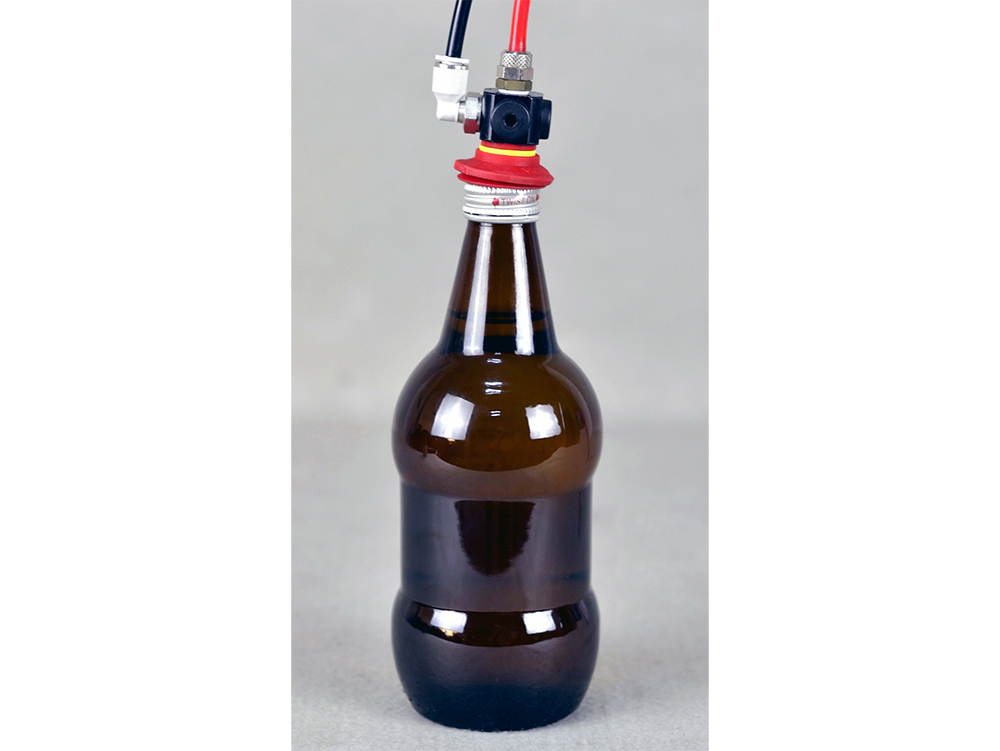

AT2E patent special needle

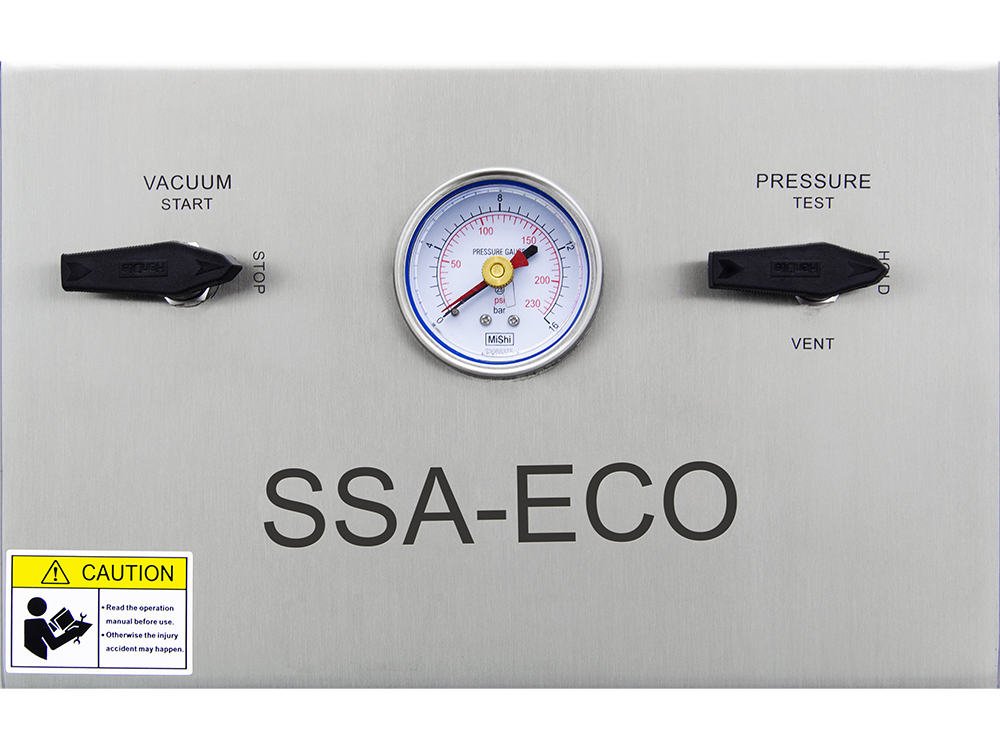

Analog display
Units: bar / Psi
Stainless steel secured device
Setting of the level of pressure (regulator)
Resistant to explosions
Setting maximum pressure: 16 bar
Compatible with typical screwed needles
5-8 bar pressure source for vacuum function
0-16 bar pressure source for testing
Overall size: 400 (L) x 550 (W) x 750 (H) mm
Net weight: 25 kg
Cutting tool for cap test

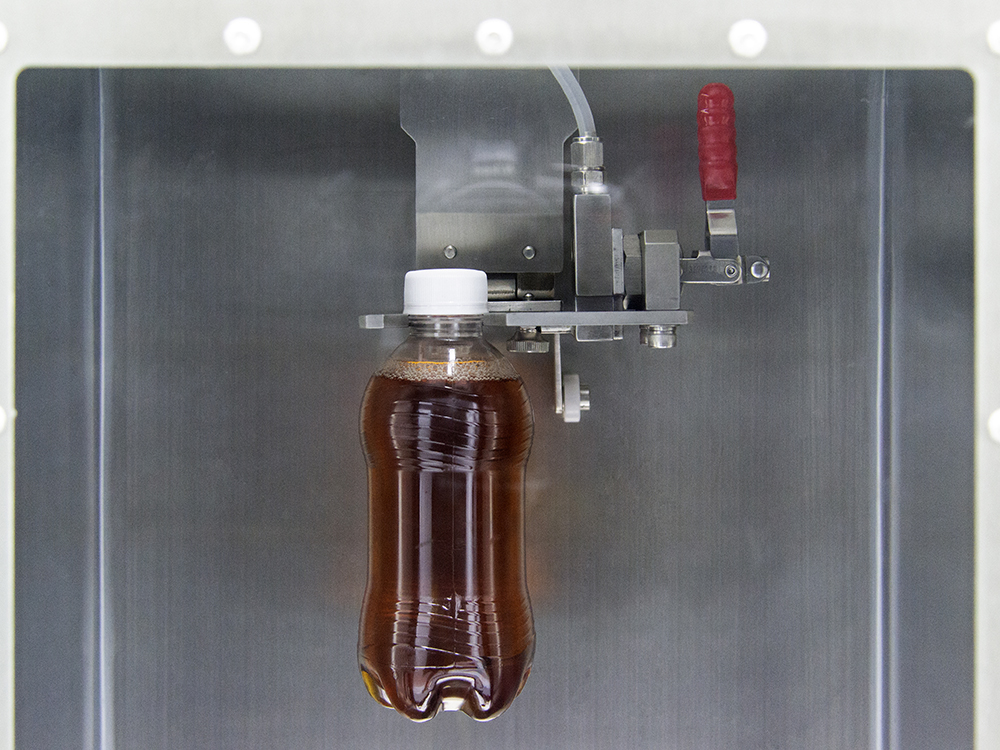

Cap holder

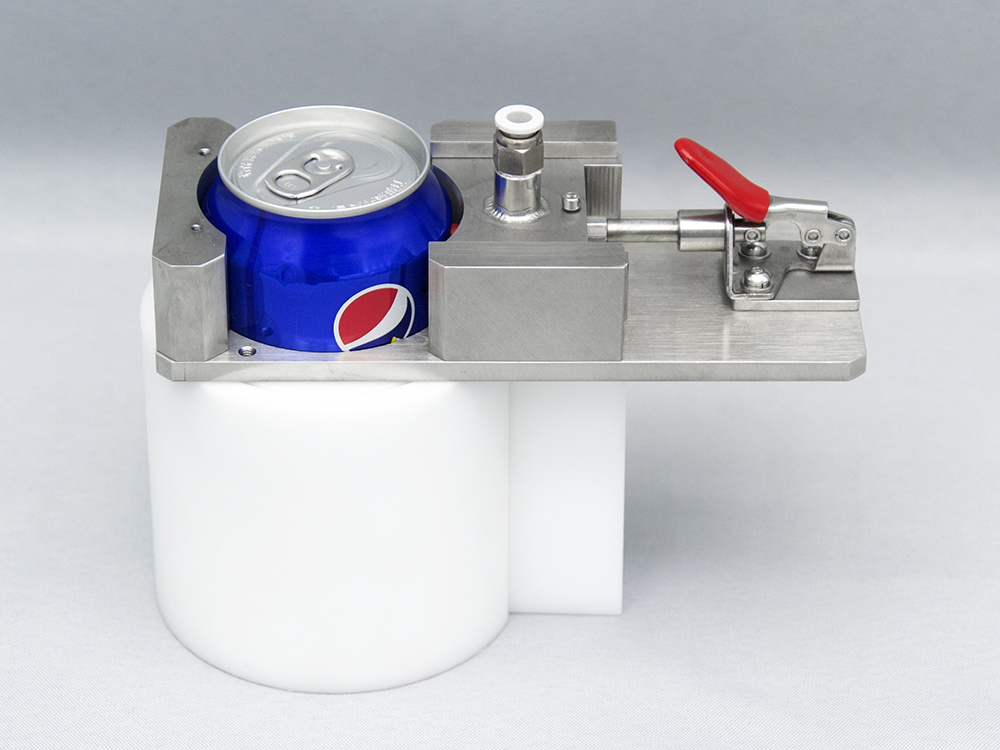

Bottle can needle

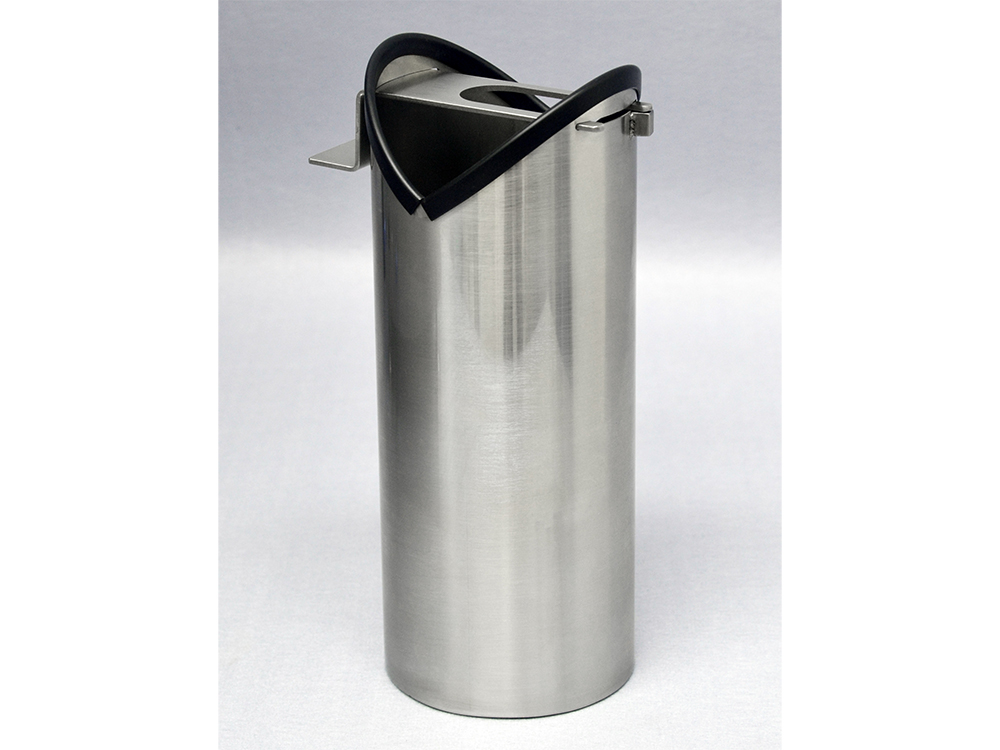

Anti-burst frame

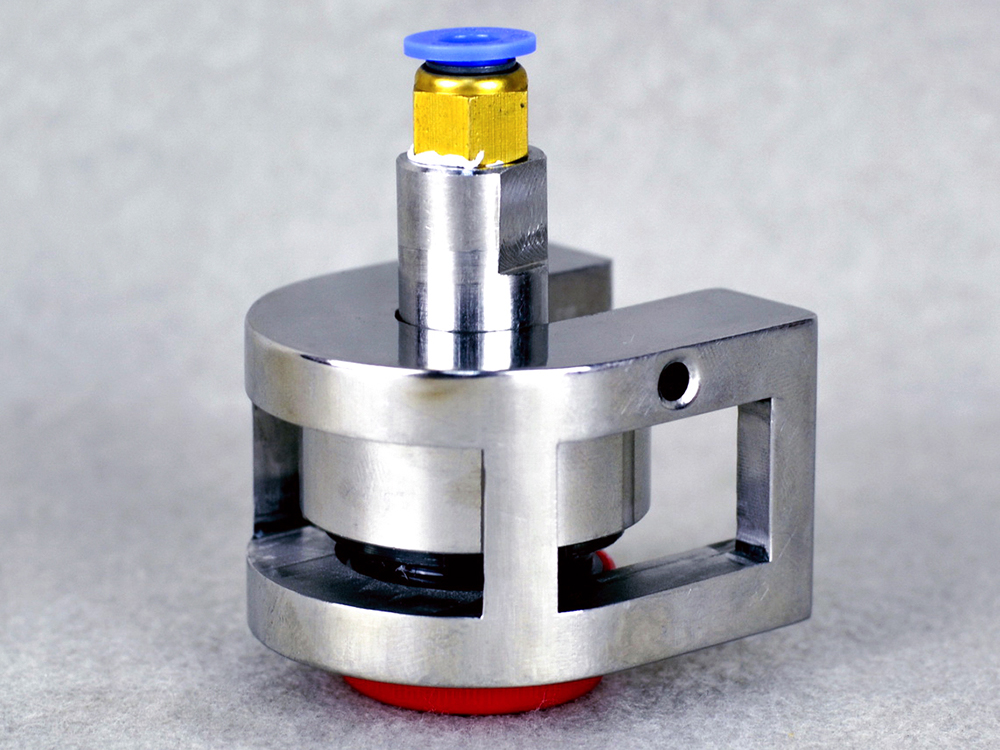

Typical screwed needle
Optional model SSA-ECO-3
