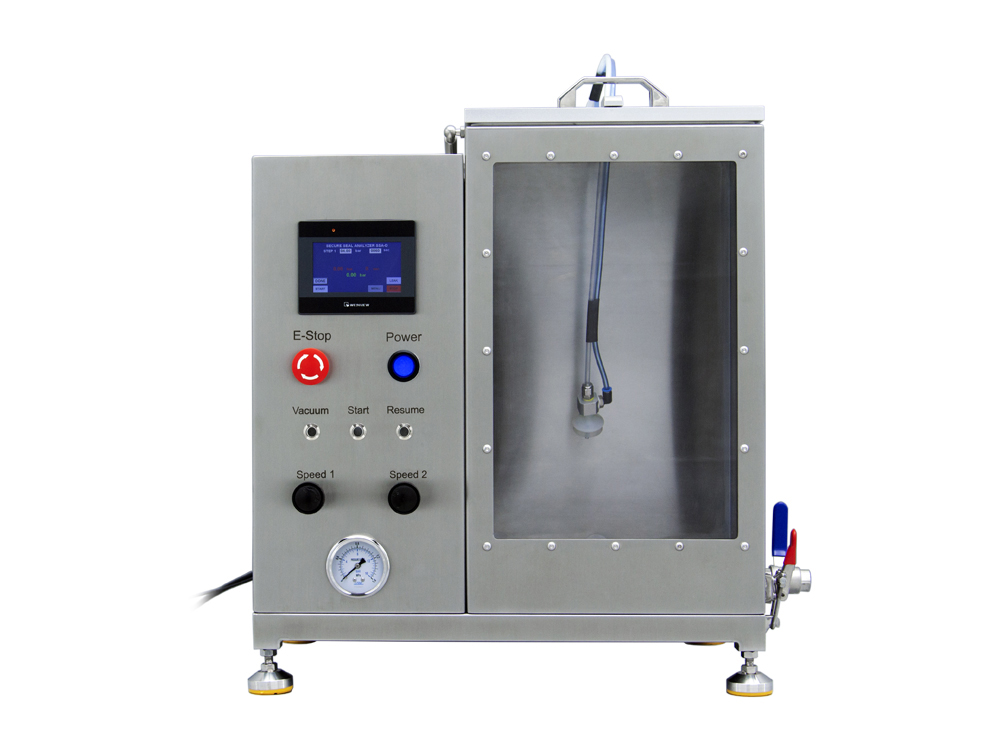

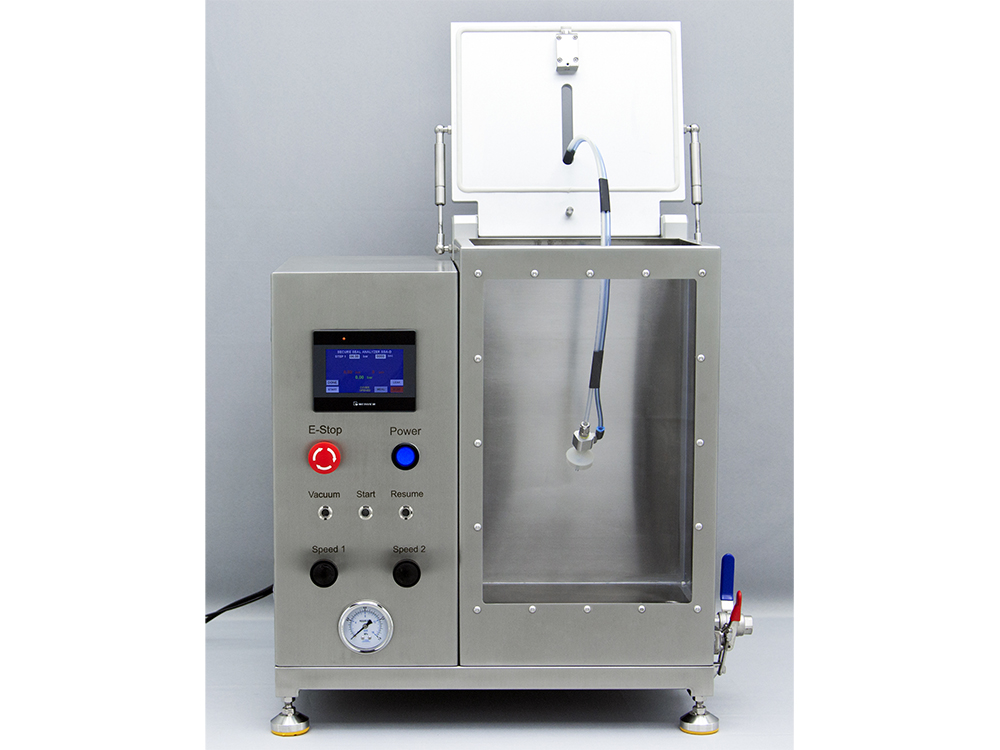

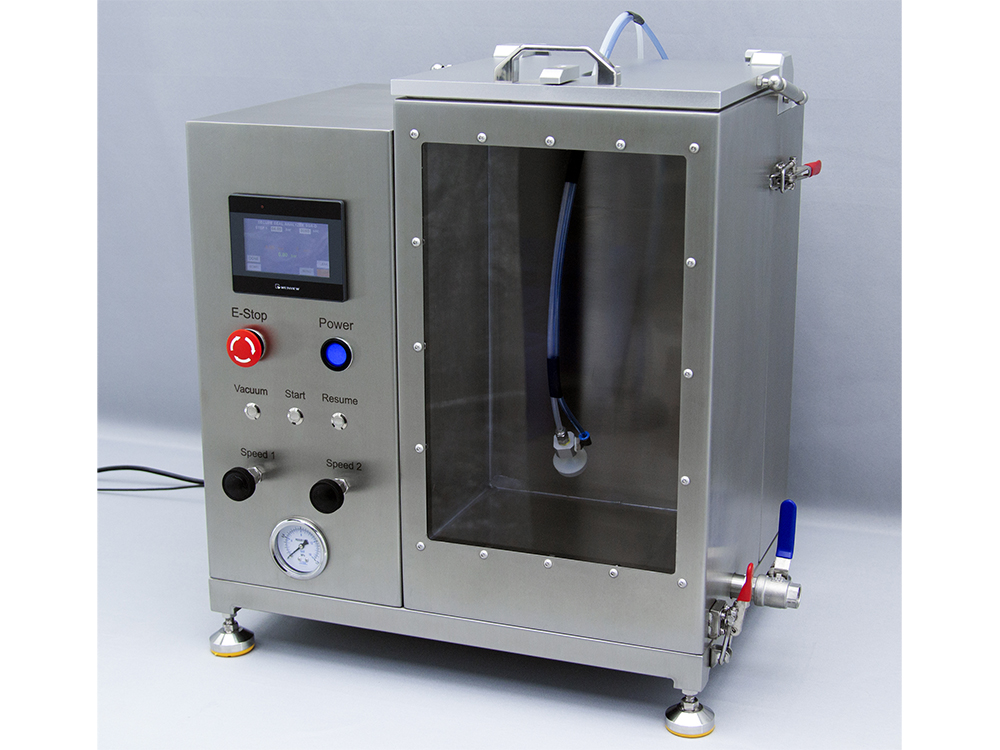

SSA-D Secure Seal Analyzer (Standard Model)

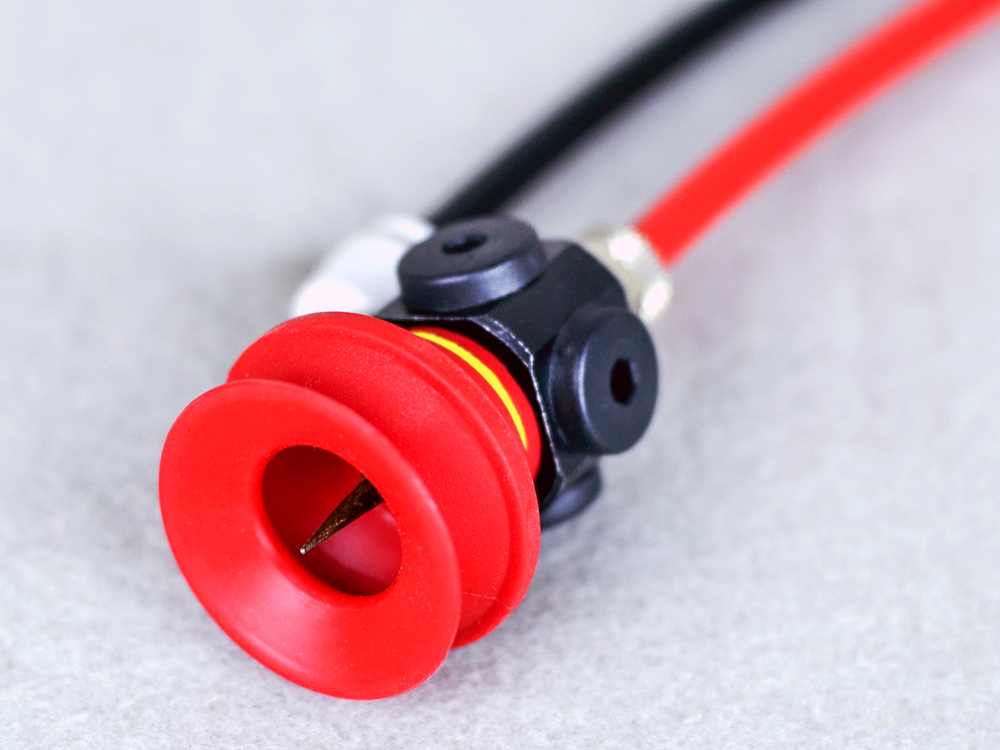

AT2E SSA-D secure seal analyzer is for testing the secure seal performance of products. With AT2E patent needle, it makes the installation and piercing very quick and easy in any medium. By vacuum technology and special design, the needle uses a function of self-holding on the tested products. However, the SSA-D can be compatible with using the needle of the classic Secure Seal Tester (typical screwed needle). It’s stainless steel design makes it resistant of any explosion during the test and ensures the safety of the operator.

SSA-D is equipped with a touching screen. It’s visual and easy to operate. Adjustable pressure and holding time stage setting meets different test requests of various products.

Technical specifications:

· Measuring range: 0 to 16.00 bar

· Test pressure accuracy: ±0.5% F.S.

· Resolution: 0.01 bar

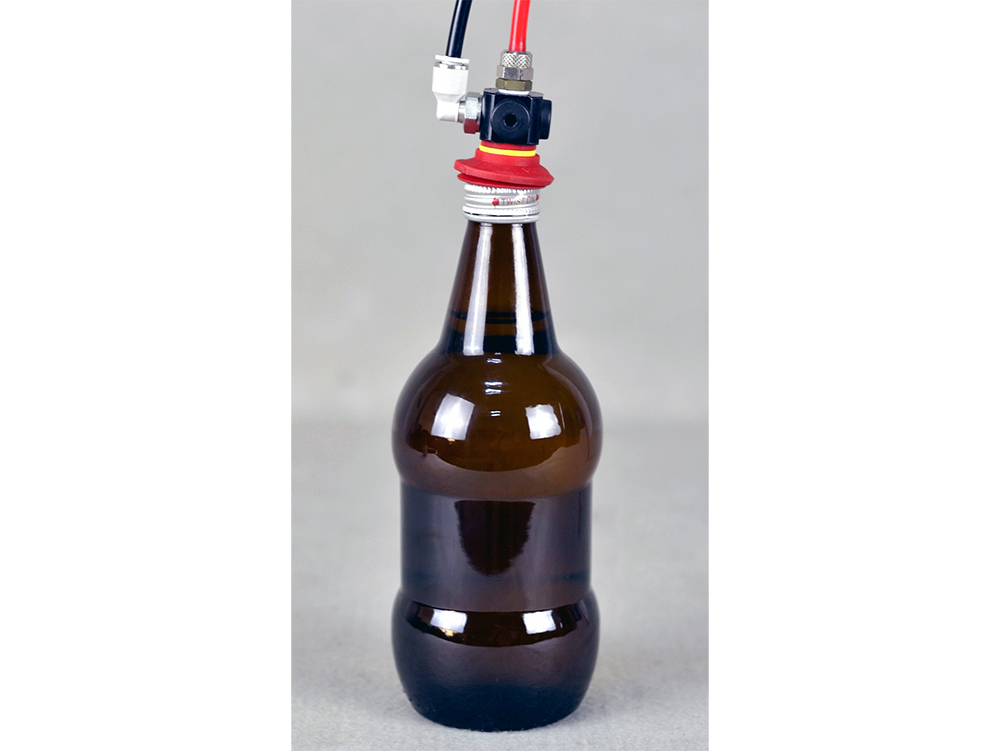

· Tests on bottles, cans and preforms

· AT2E patent special needle

· Touching screen display

· Units: bar / Psi

· Stainless steel secured device

· Stages pressurizing rate adjustable (regulator)

· 2 stages of pressure and holding time setting

· Resistant to explosions

· Setting maximum pressure: 16 bar

· Compatible with typical screwed needles

· 5-8 bar pressure source for vacuum function

· 0-16 bar pressure source for testing

· Sample range: max. Φ126 x 365 (H) mm

· Power supply: AC 110 - 240 V   50/60 Hz

· Overall size: 630(L) x 450(W) x 660(H) mm

· Net weight: 52 kg

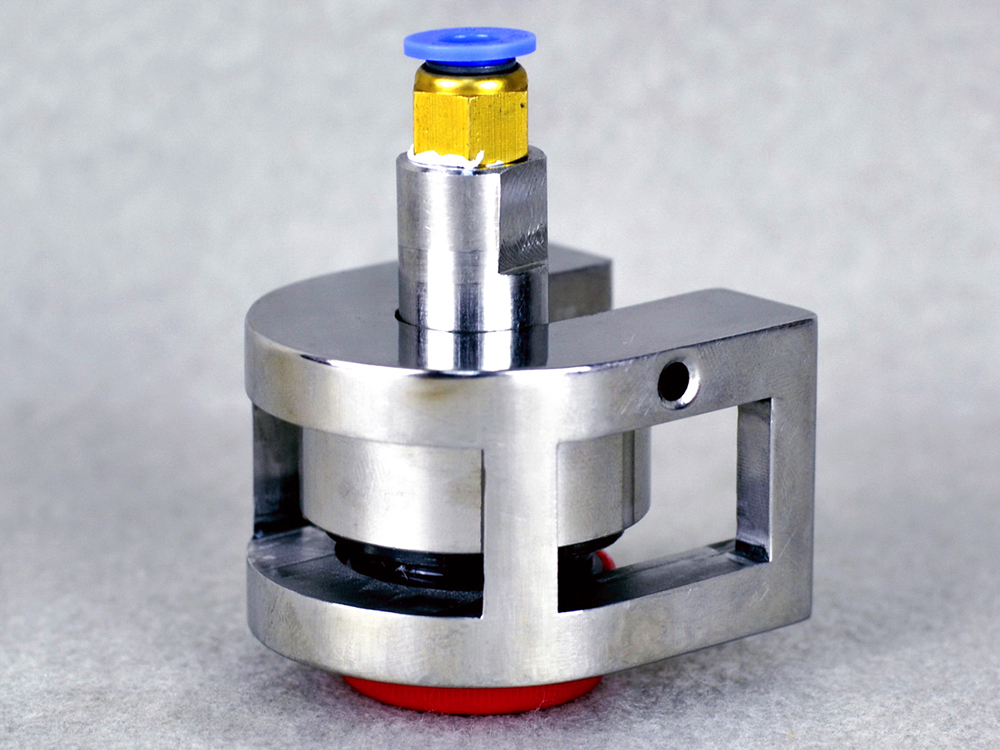

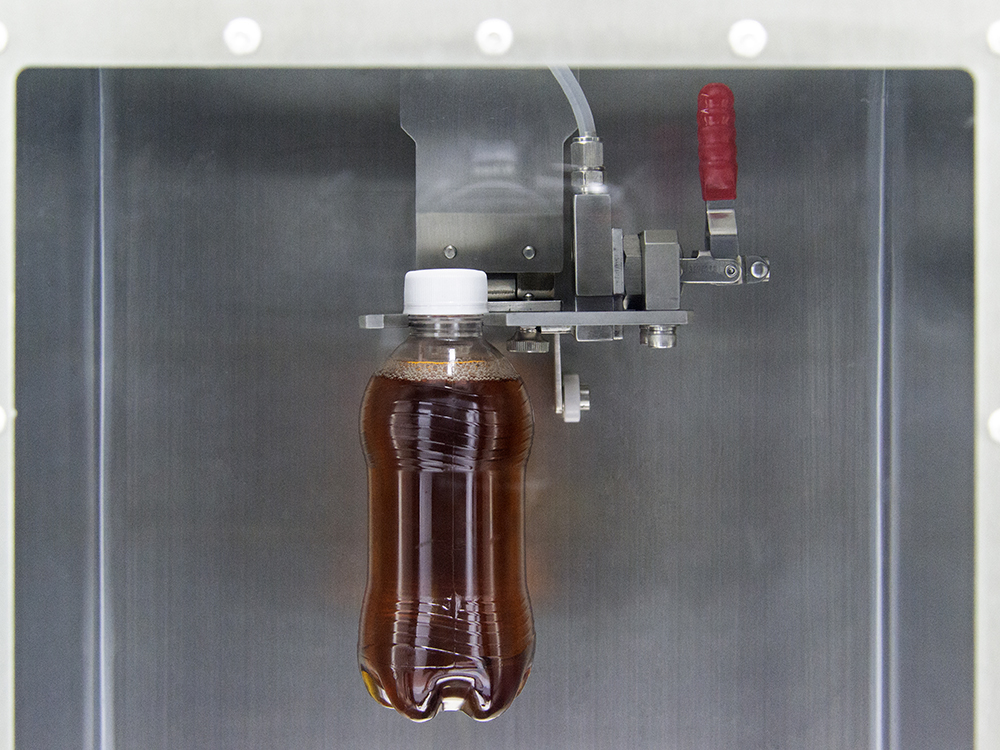

· Specialized piercing unit for PET bottle

· QUALIORESS data management software

· 3 stages of pressure and holding time setting

· Cutting tool for cap test

· Cap holder

· Can test assembly (design subject to can type and can type amount)

· Bottle can needle

· Anti-burst frame

· Typical screwed needle

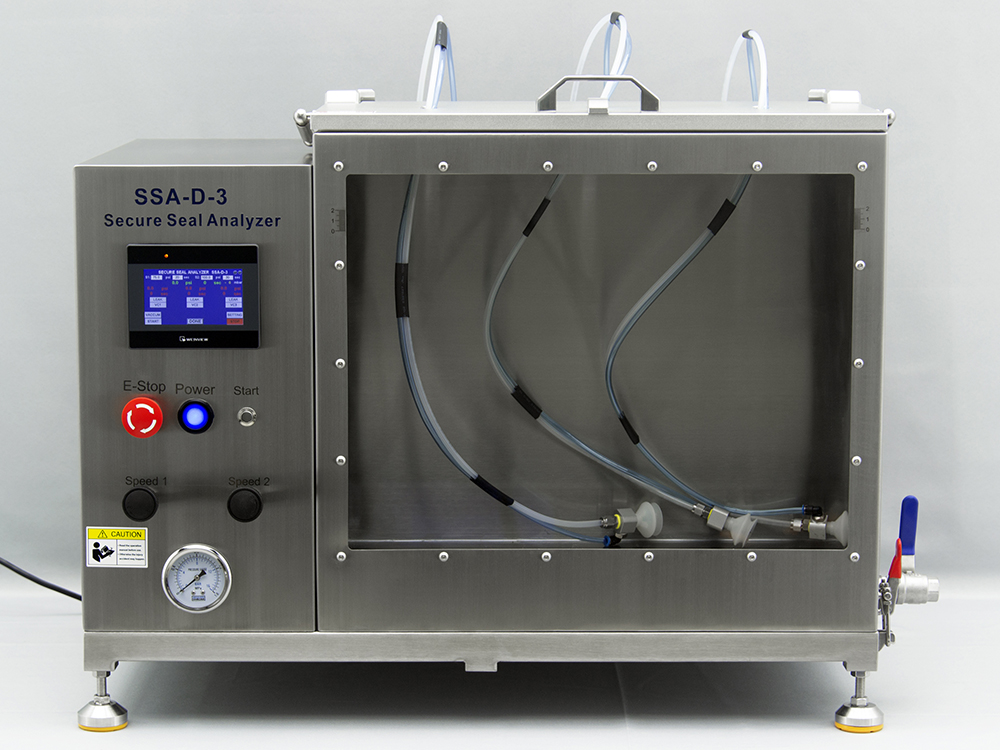

· Optional model SSA-D-3
