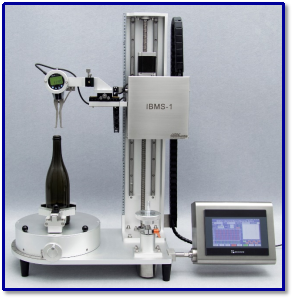

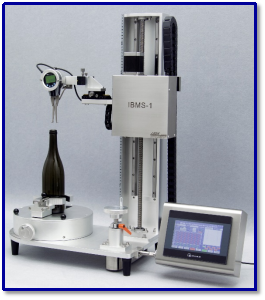

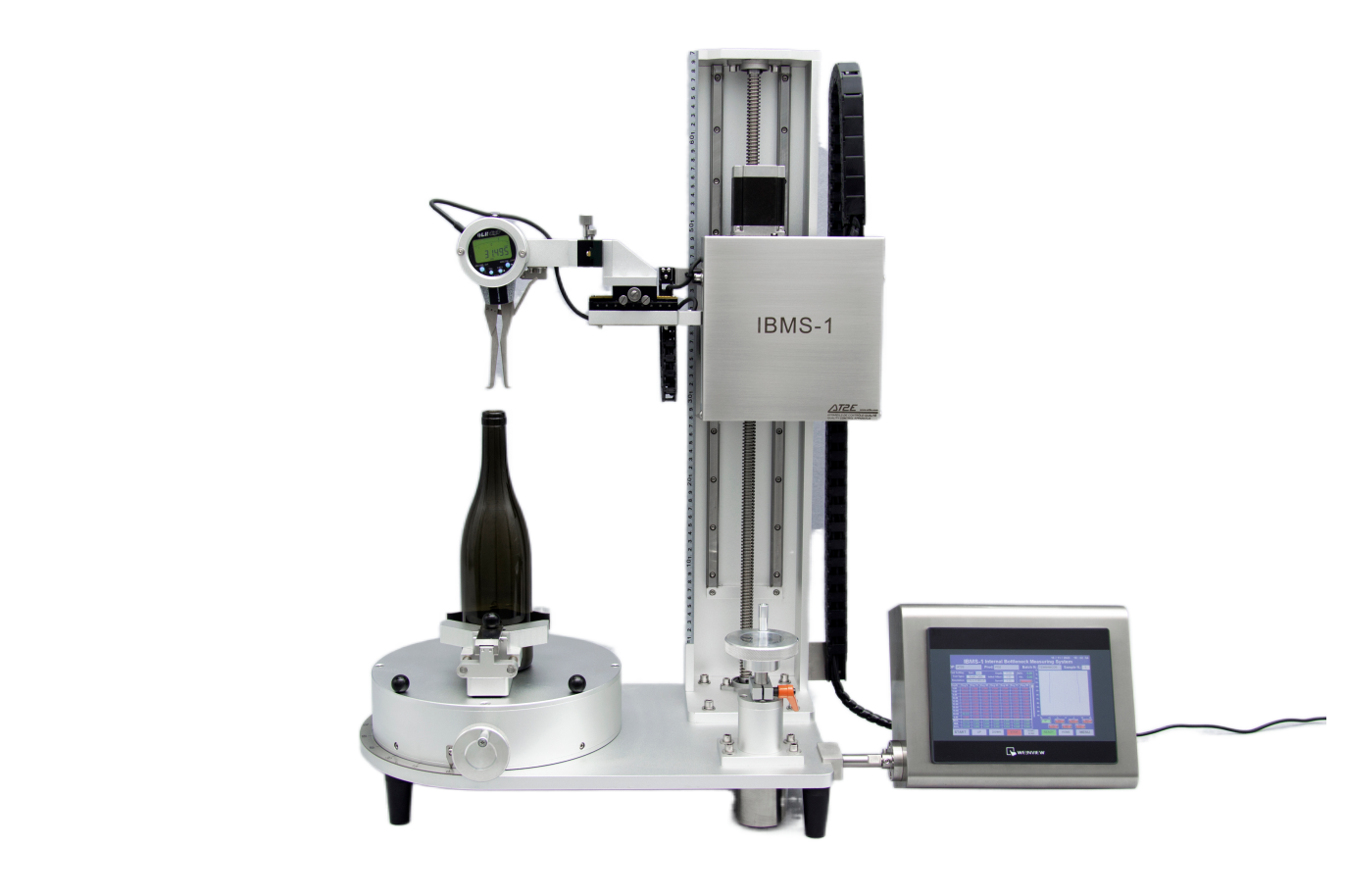

IBMS-1 Internal Bottleneck Measuring System

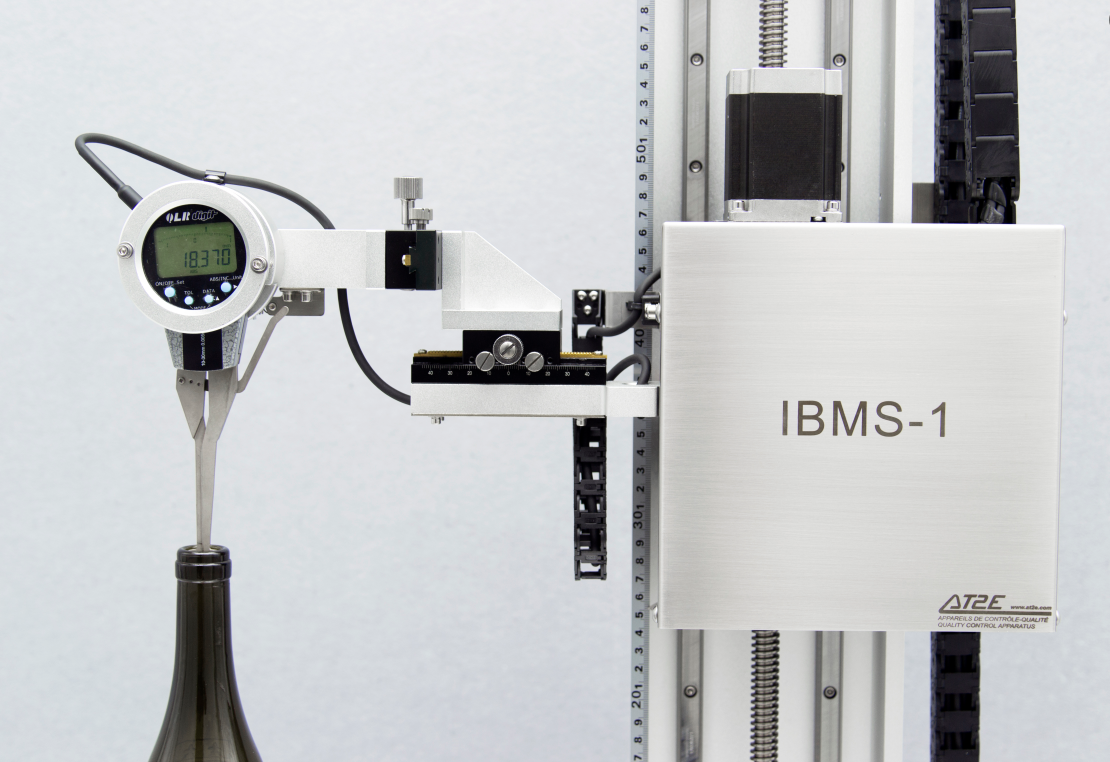

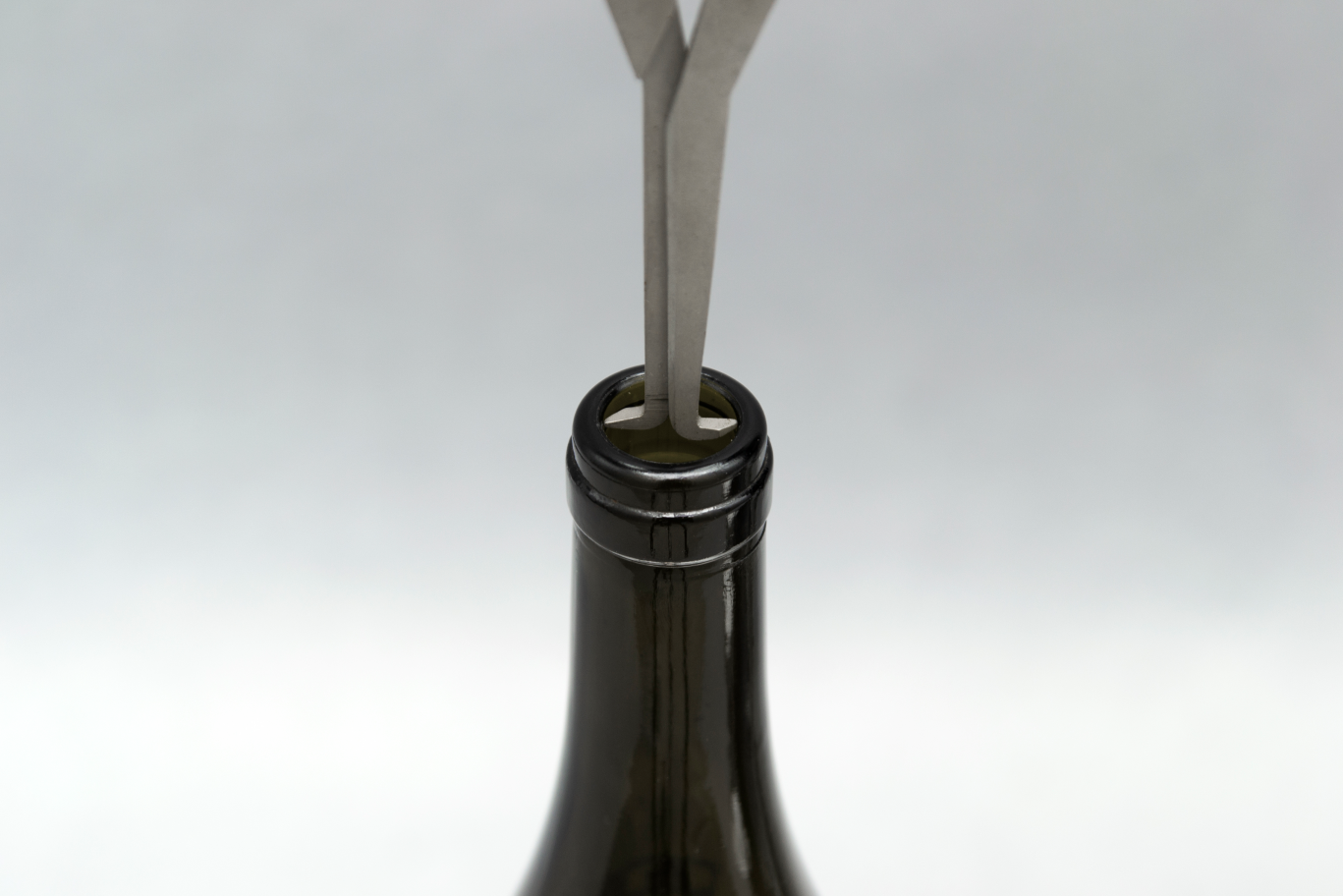

IBMS-1 Internal Bottleneck Measuring System is used to measure the internal diameter of bottleneck.

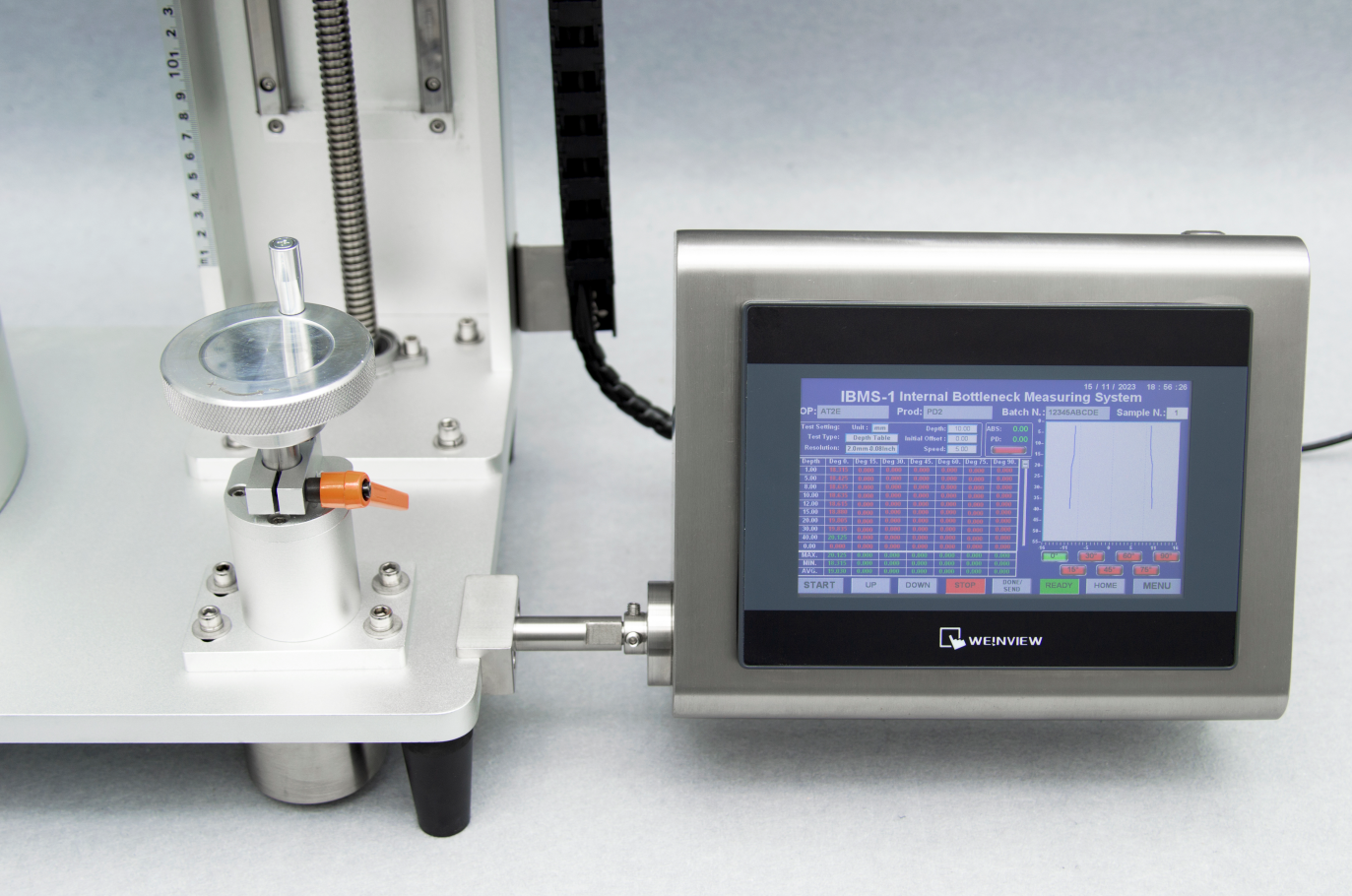

The bottleneck profile is an important parameter for bottle manufacturers, cork stoppers producers and wineries to control. With AT2E IBMS-1, customer can detect the bottleneck roundness or ovality easily. The IBMS-1 can collect the bottleneck internal diameter at up to 7 angles (0° / 15° / 30° / 45° / 75° / 90°) and any depth (0-55 mm) from the bottle finish by operating on the touching screen. With it’s convenient and high repeatable design, the value and bottleneck profile are visible on the touching screen. Data can be transferred to the optional software for further analyse and management.

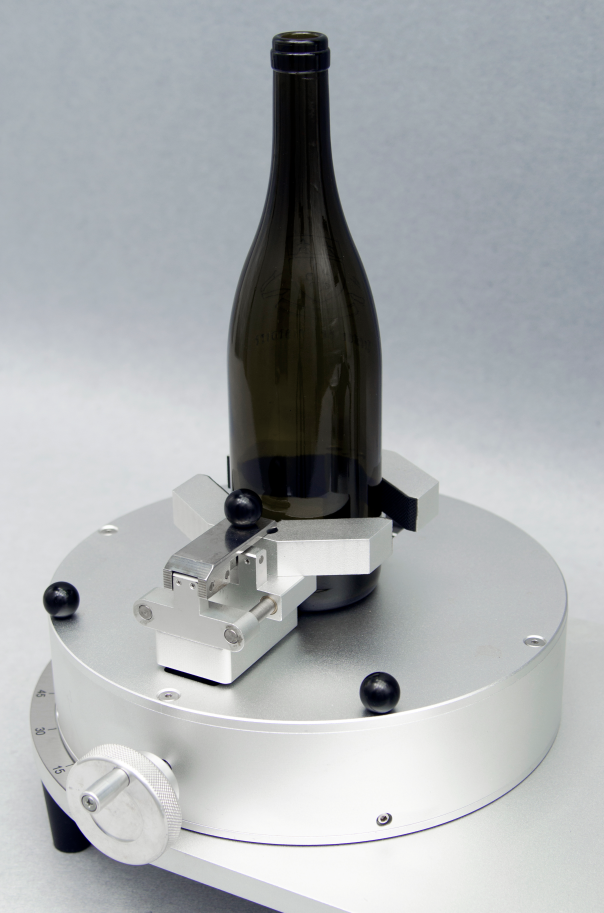

It’s applicable for various sizes of bottle with the special design of clamping and rotatory system.
Technical specifications:
· Sample range: 70 - 150mm in diameter (Bigger by order)
100 - 500mm in height (Bigger by order)
· Measure range: Neck internal diameter: 10 - 30 mm
Depth: 0 - 55 mm
· Resolution of depth: 0.5 / 1.0 / 2.0 / 5.0 mm
· Measure angles: 0° / 15° / 30° / 45° / 75° / 90°
· Unit: mm / inch
· Resolution of internal diameter: 0.005mm / 0.0002 inch
· Resolution of depth: 0.01mm / 0.001 inch
· Measuring accuracy: ±0.05mm
· Power supply: 100 - 240V@50 / 60 Hz
· Over all dimensions: 850 × 370 × 850mm
· Weight: 38 kg
Optional parts:
· QualiIBMS Data management software
