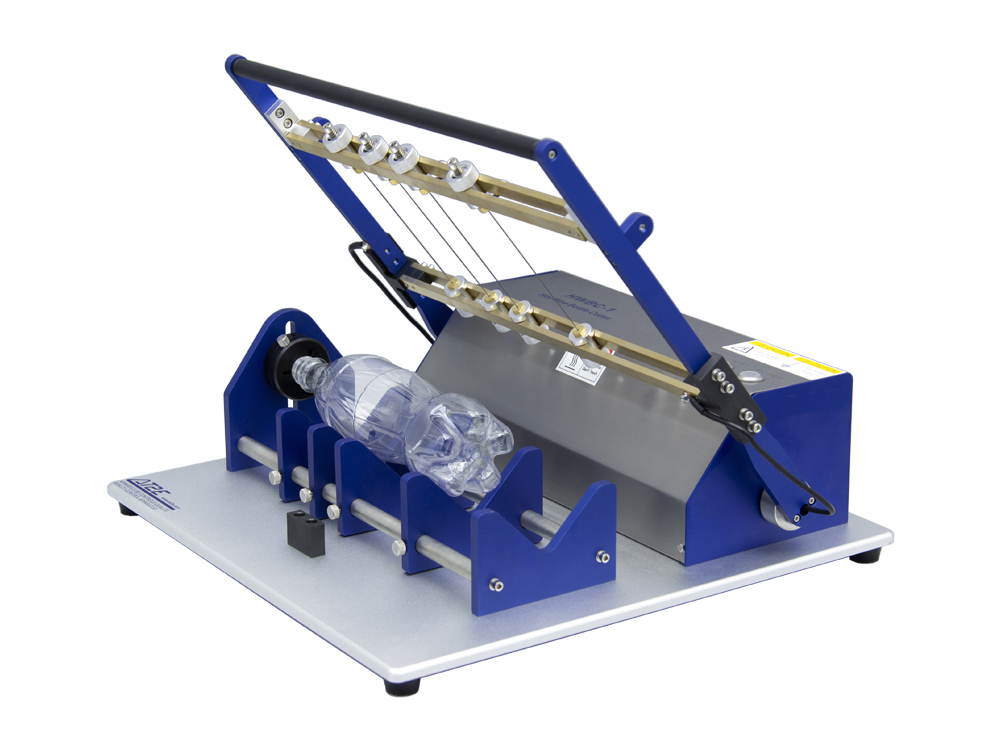

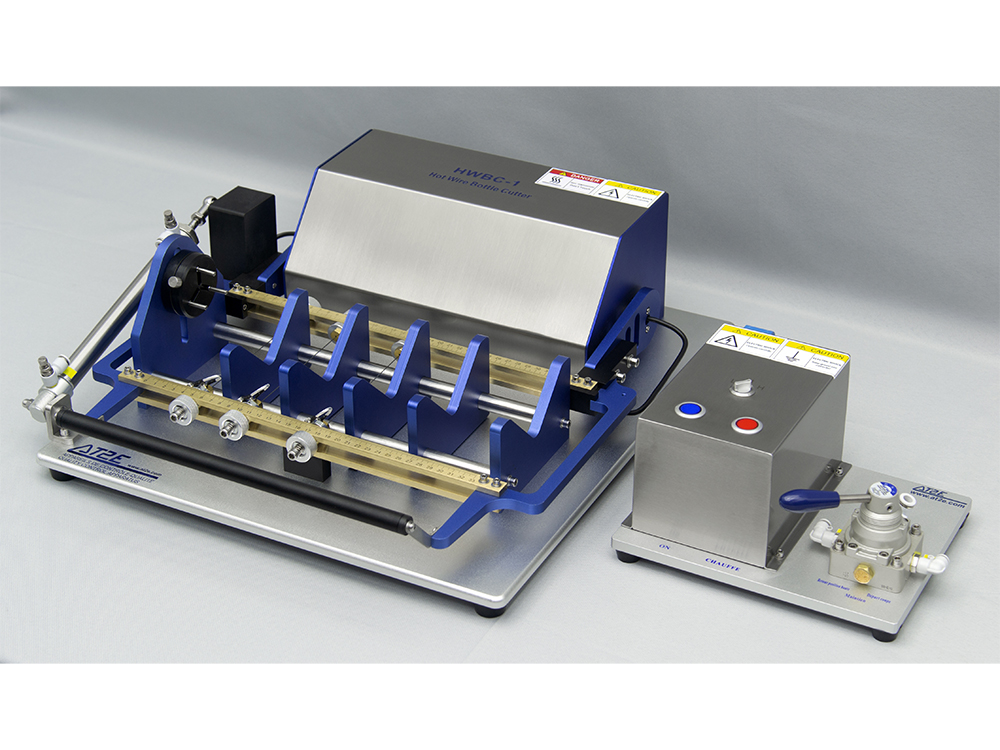

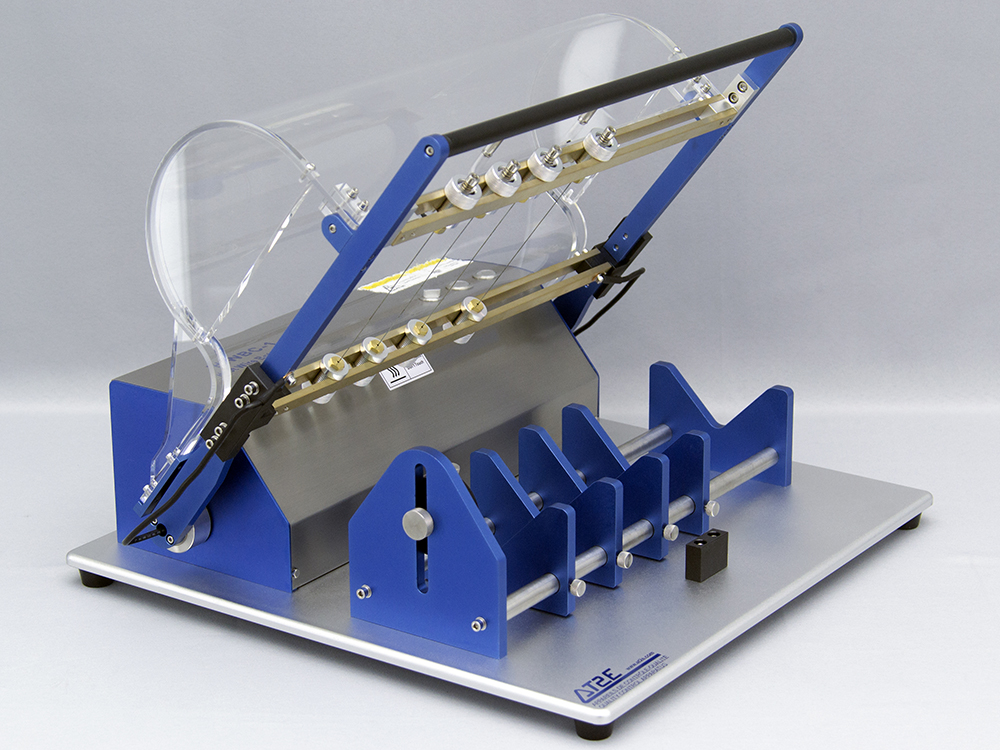

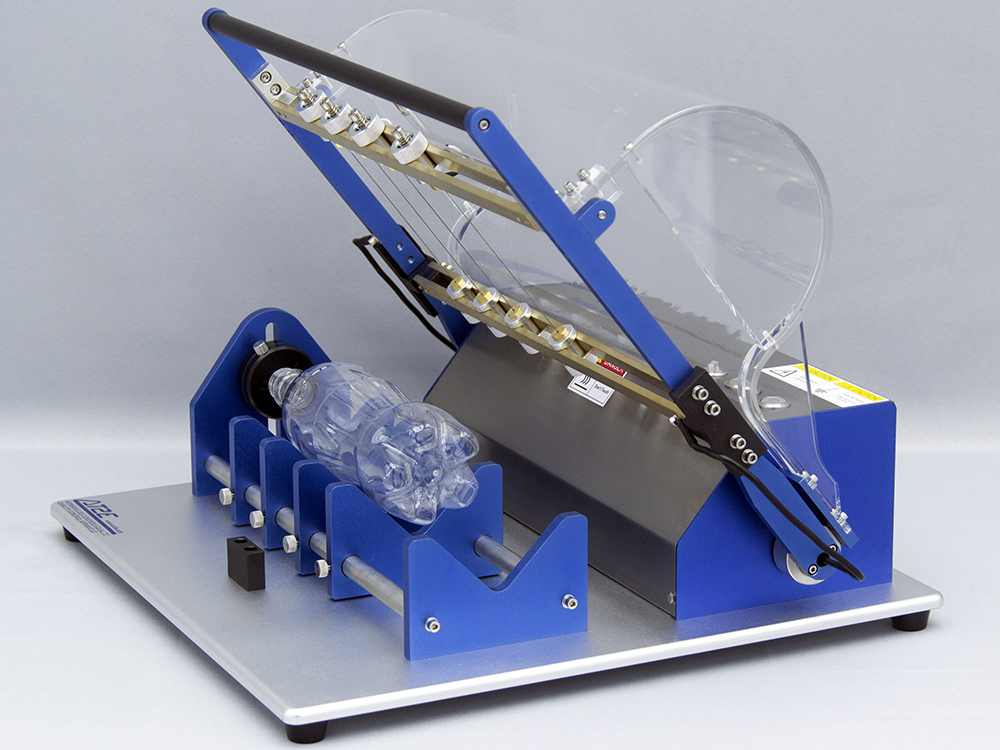

HWBC-1 Hot Wire Bottle Cutter

The HWBC-1 Hot Wire Bottle Cutter offers an easy and cost saving way for cutting containers for section weight analysis. A clean section without deformation will be obtained by a quick cutting of bottles through heated hot wires. A precision and repeatable cutting task is easy to achieve and it’s necessary for a proper analysis.

With HWBC-1, a PET bottle could be cut up to 5 predetermined sections, each section will be checked to ensure that it conforms to the exact weight assigned.

Attributes:

• Durable design & Easy to operate & Excellent repeatability

• Bottle cut with accuracy up to 5 sections cut

• Cutting up to 2 L bottle

• Universal finish support, compatible for the bottle finish diameters from 17 to 40 mm

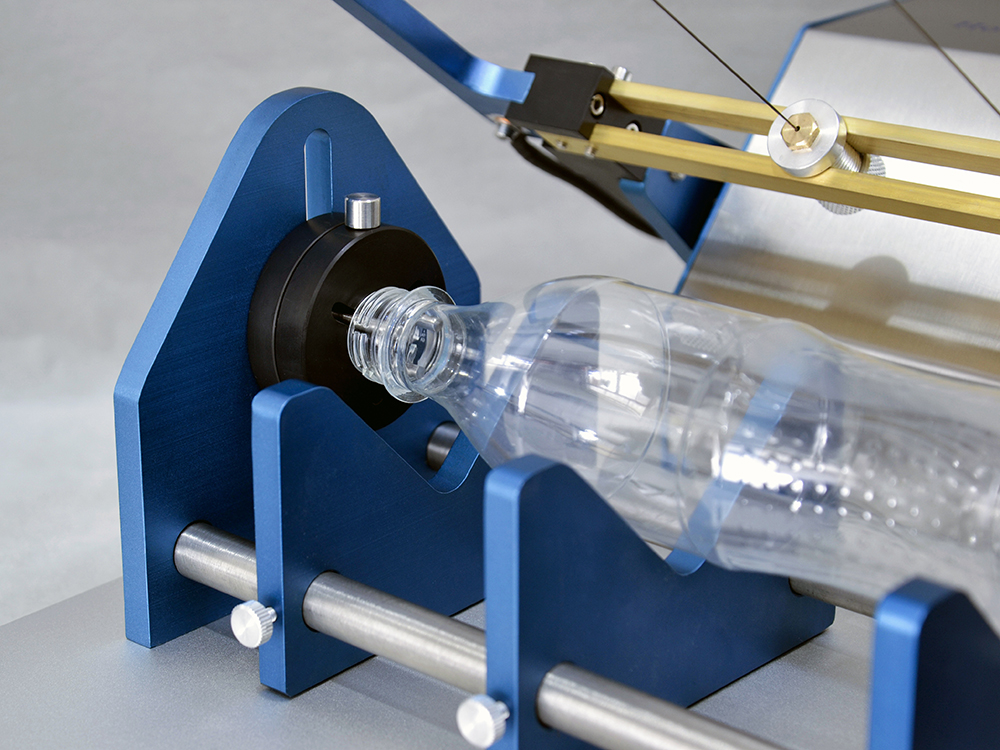

• Adjustable supports for bottles during the cutting process

• Graduated rulers allow accurate positioning of wires

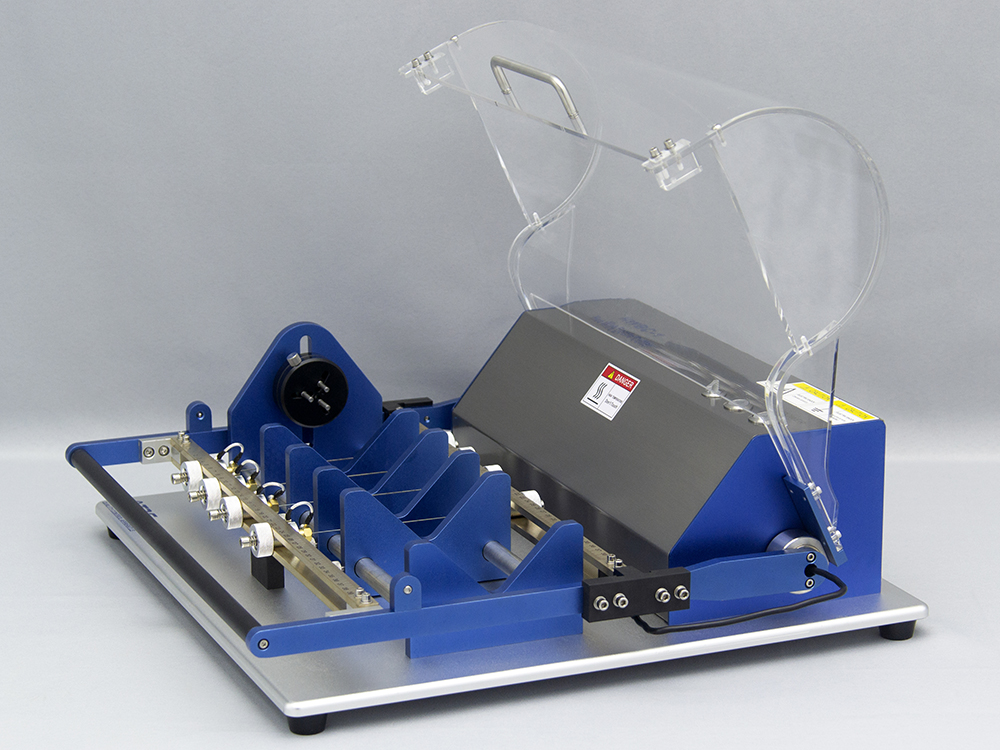

• Safety cover design which exhausts gases out of face of the operator (optional)

• Rapid warming the wires

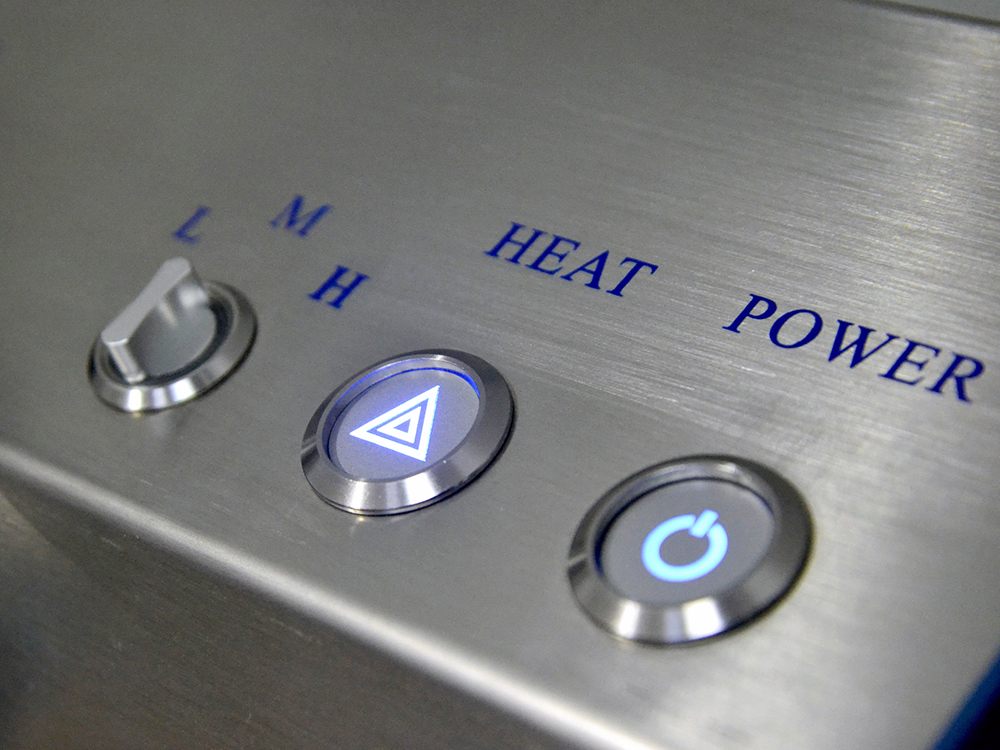

• Dual heating mode saves energy and extends the life of wires

• Adjustable heating power allows operator to select the correct power according to different bottle and prolong the life time of the wire.

Technical specifications:

• Sample range: Maximum height 360 mm

• Maximum diameter 110 mm

• Power supply: 220 VAC / 50 Hz

• Dimension: 470 (L) x 510 (W) x 350 (H) mm

• Net weight: 18 KG

• Safety cover
