ECDG-1 End Curl Diameter Gauge

DESCRIPTION：ECDG-1 End Curl Diameter Gauge is for quick measure of the Curl Diameter of ends.Easy-operation design offers a fast and accurate measurement of the Curl Diameter. For each end type, a corresponding c...

Telephone：400-089-0039

CONSULT CONTACT

Describe
Data download

Describe

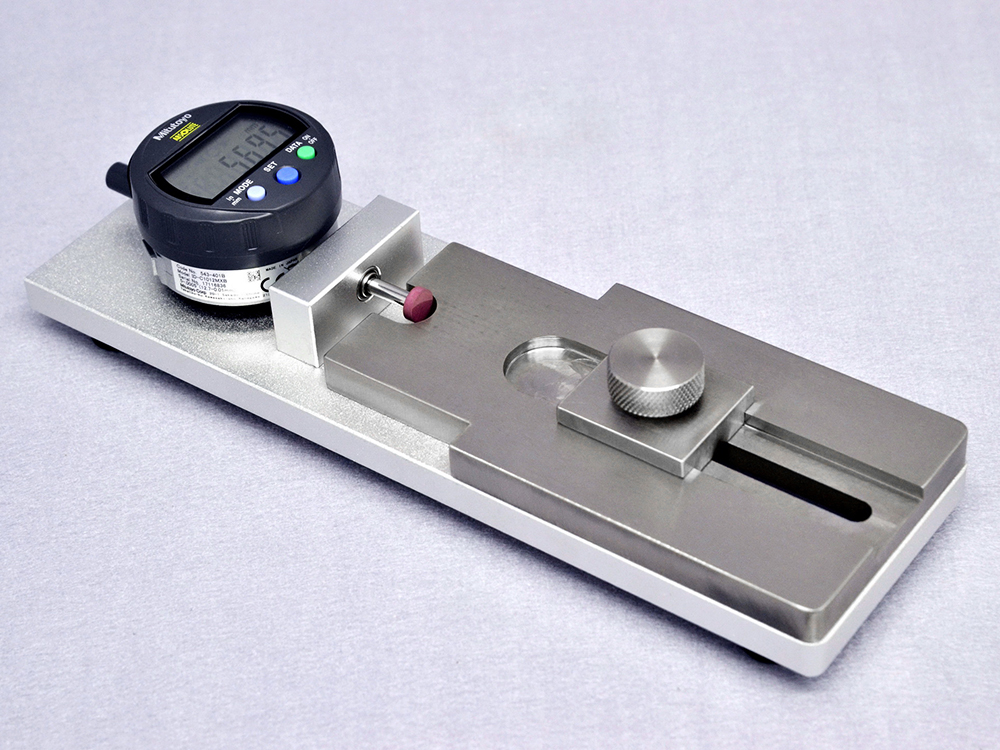

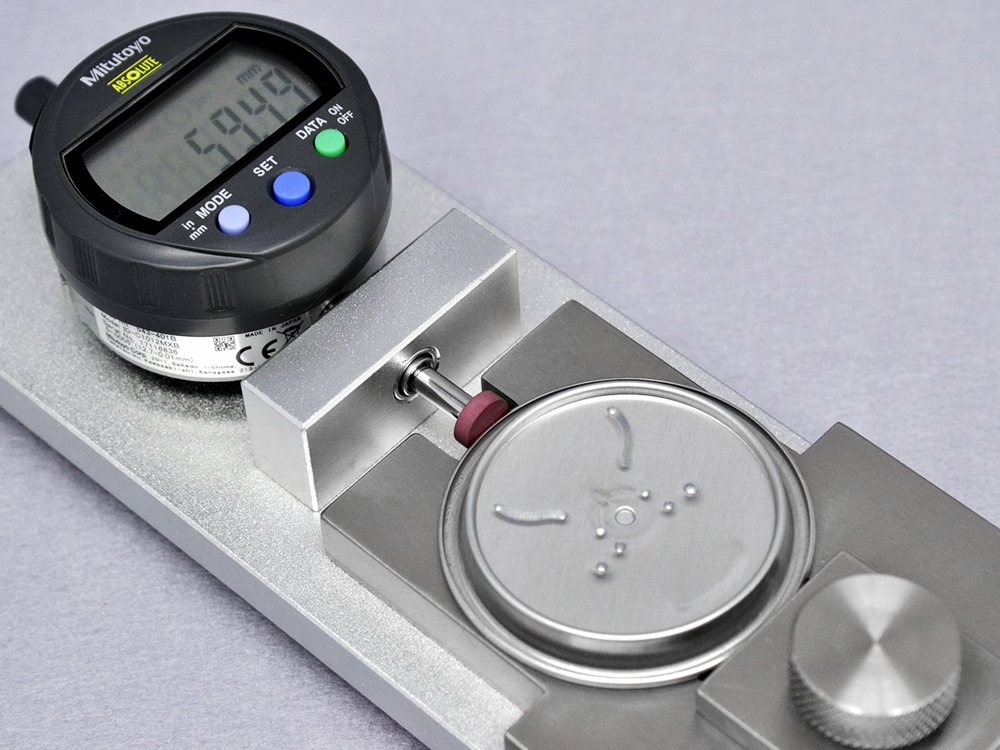

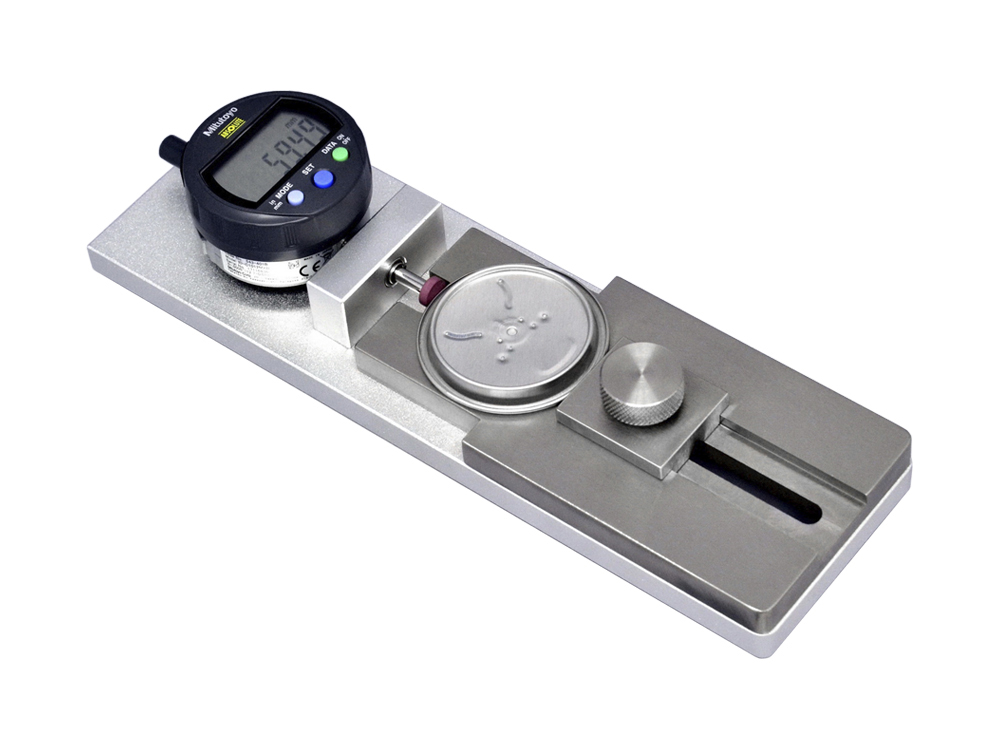

ECDG-1 End Curl Diameter Gauge is for quick measure of the Curl Diameter of ends.

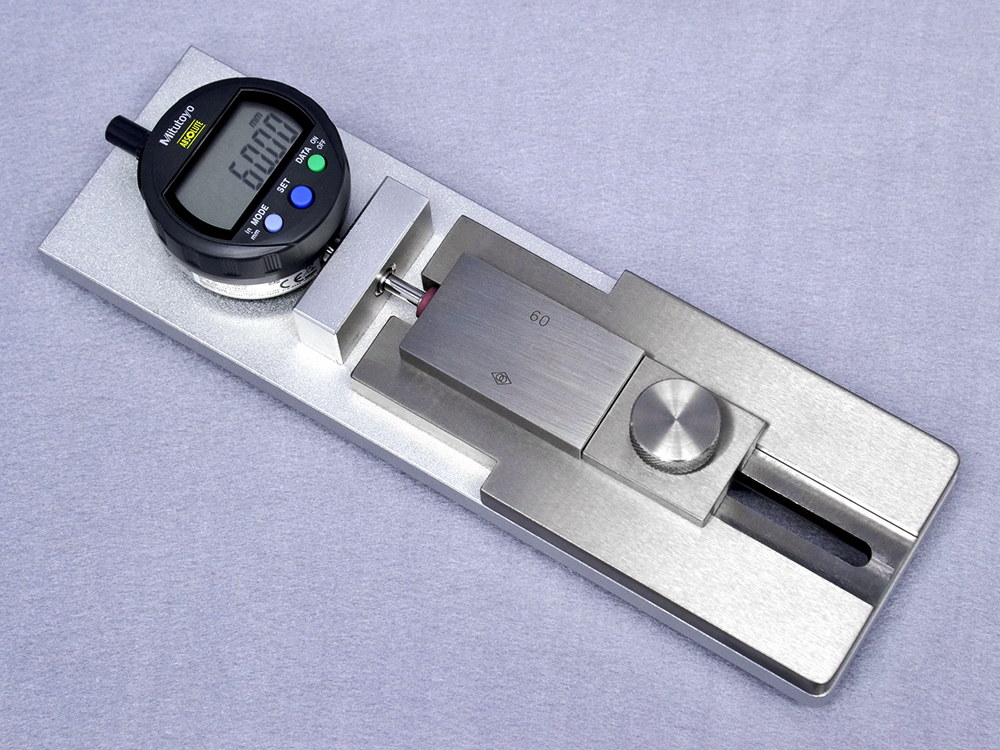

Easy-operation design offers a fast and accurate measurement of the Curl Diameter. For each end type, a corresponding calibration block will be supplied along with the gauge.

In order to avoid the manual recording error, the gauge can be connected to SPC system with DTB-1 Data Transporting Box and cable. So that, the data can be transferred to SPC system DTB-1 and cable.

Technical specifications:
Measuring range : Φ50-Φ110 mm
Resolution : 0.01 mm
Accuracy : ±0.01 mm
Sample End Type: : 113# - 401# (larger by order)
Overall size : 265(L) x 80(W) x 195(H) mm
Net weight : 2 kg
