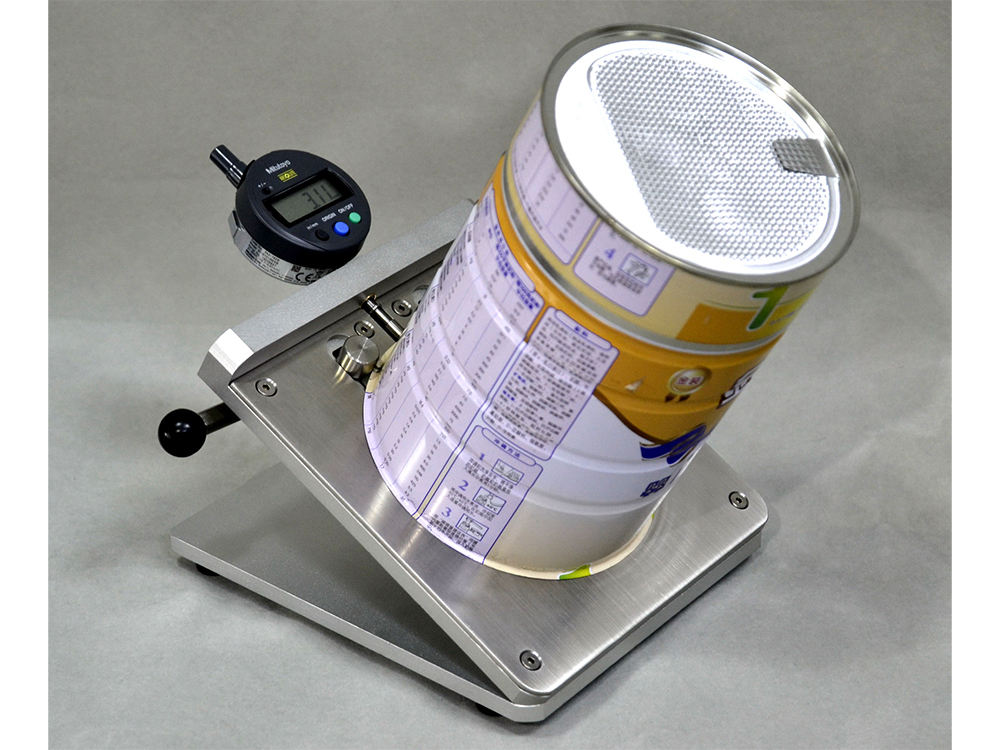

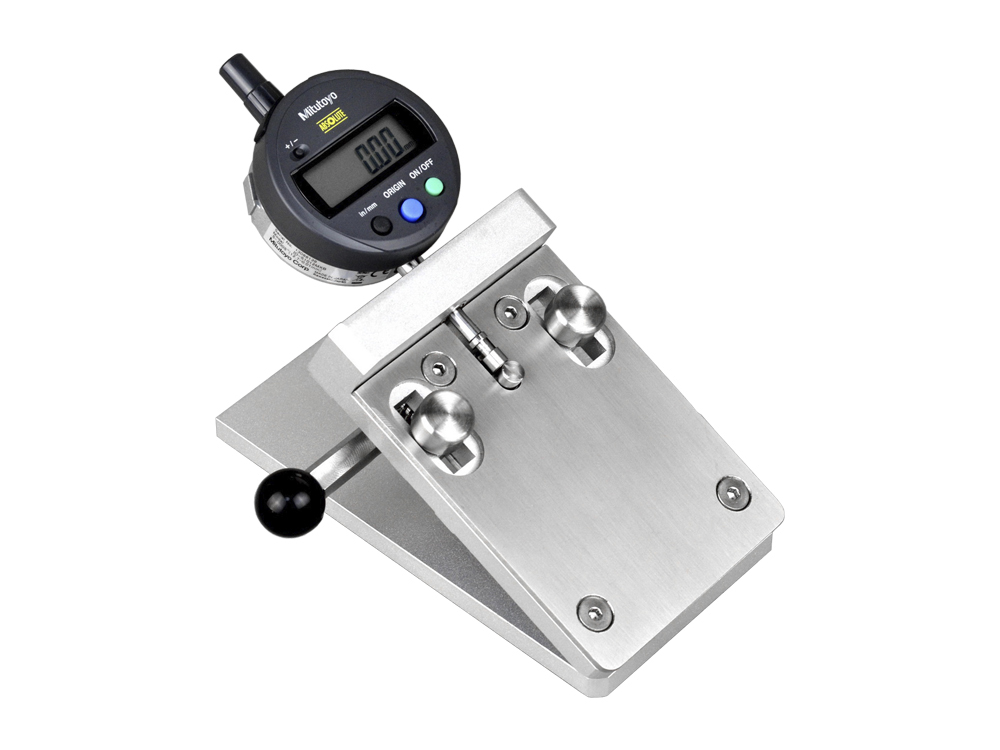

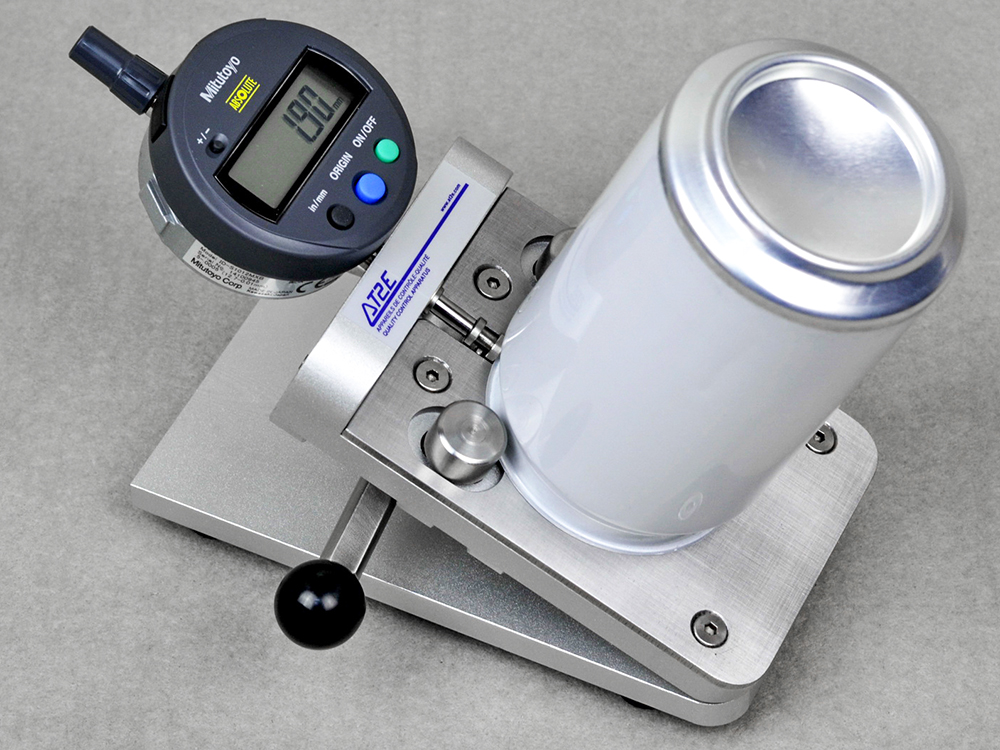

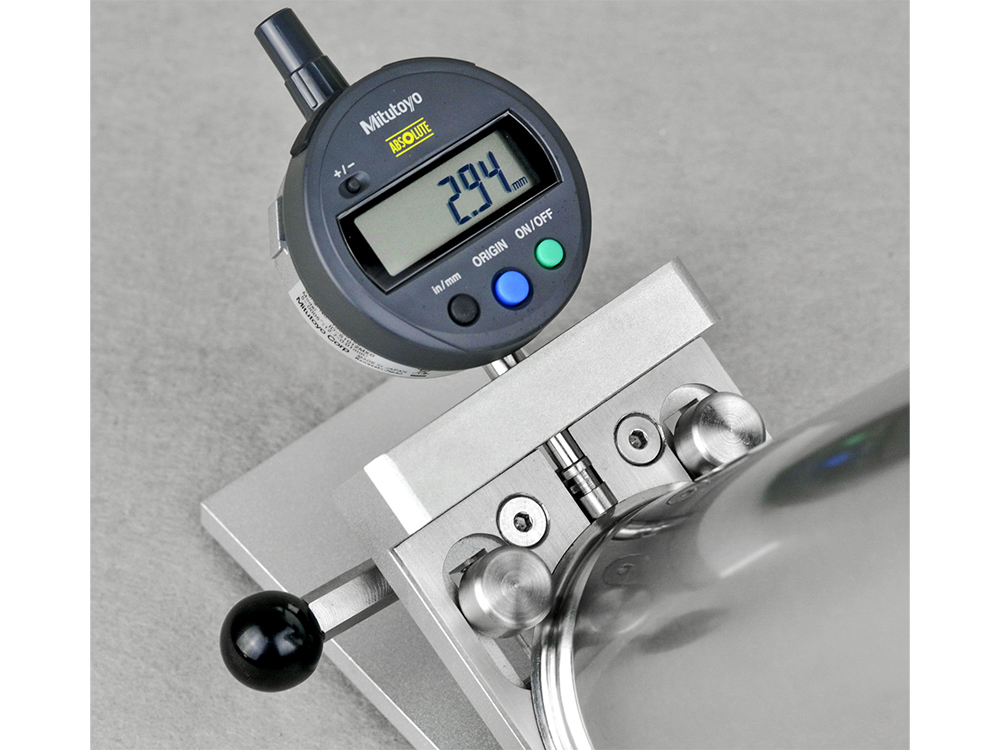

FWG-1 Flange Width Gauge is used to measure the flange width of empty cans.
Easy-operation design offers a fast and accurate measurement of flange width.
In order to avoid the manual recording error, the gauge can be connected to SPC system or AT2E “SeamCheck” software with DTB-1 Data Transporting Box and cable. So that, the data can be transferred to SPC system or “SeamCheck” software through DTB-1 and cable.
Technical specifications:
Measuring range : 0-5 mm
Resolution : 0.01 mm
Accuracy : ±0.01 mm
Sample range : 3-pcs & 2-pcs can
Sample capacity : 50 mm to 90 mm dia. can (Bigger by order)
Overall size : 180(L) x 103(W) x 108(H) mm
Net weight : 1 kg
