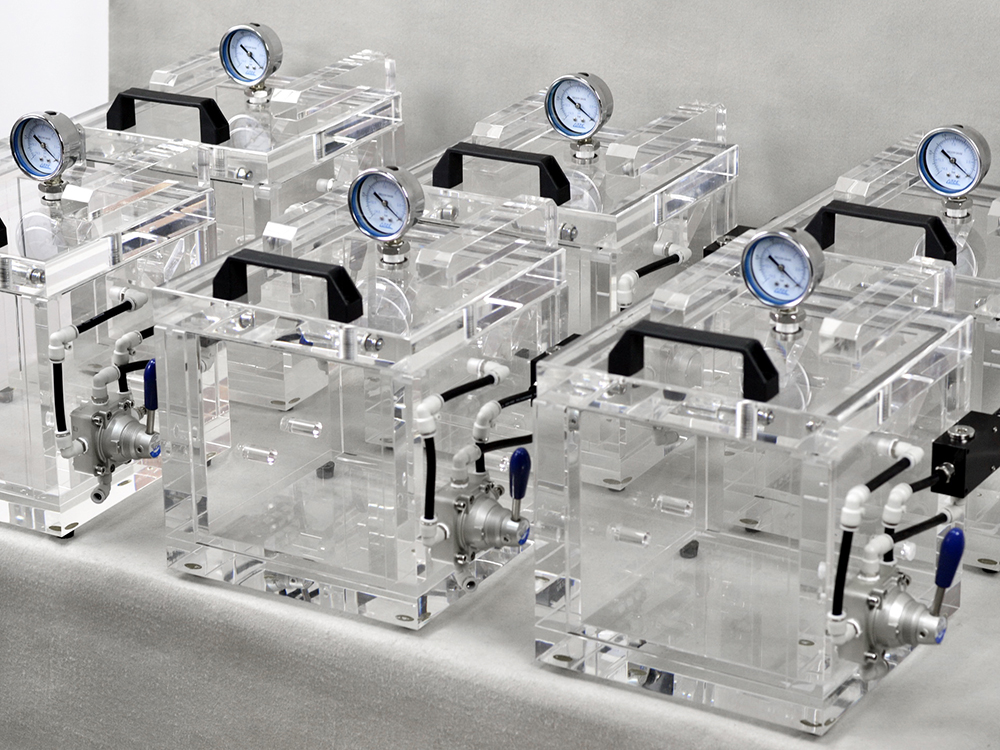

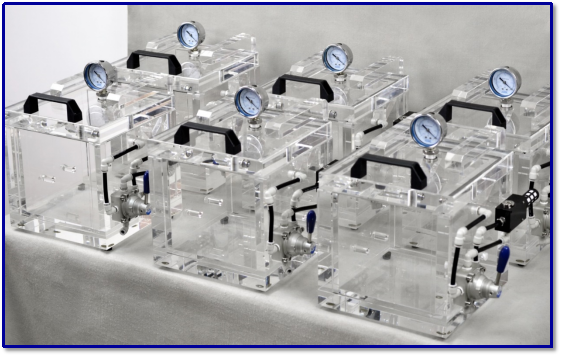

VLT-ECO Vacuum Leak Tester (ECO Model)

VLT-ECO Vacuum Leak Tester (ECO Model)

(Air and water tightness test box: vacuum test)

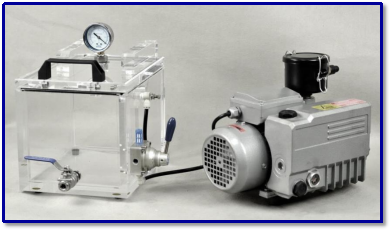

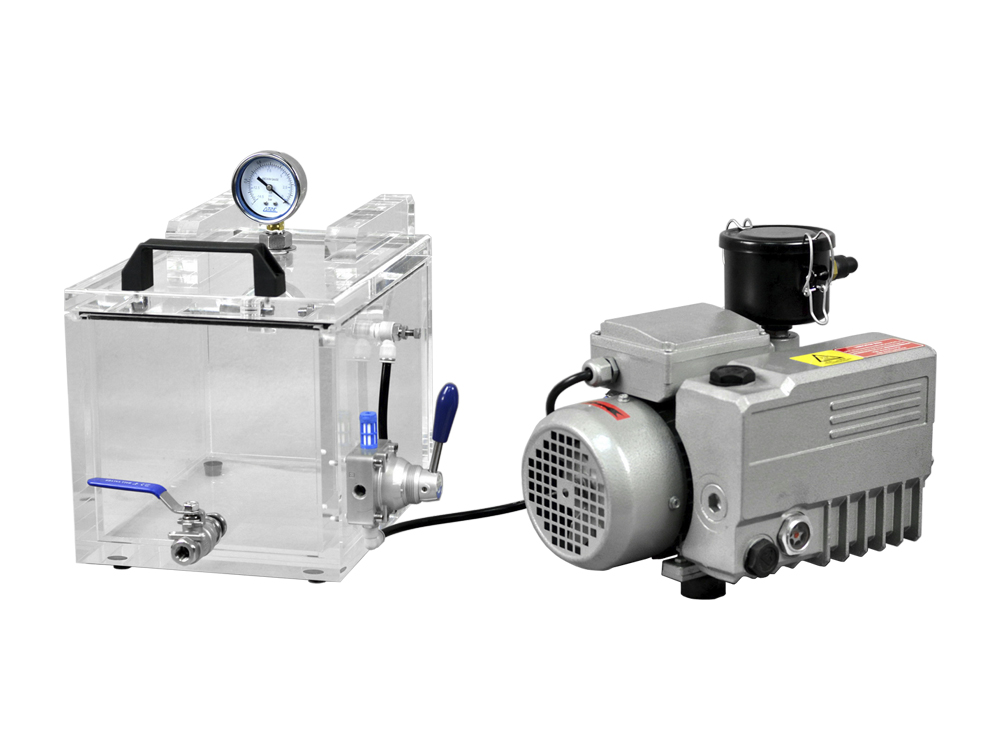

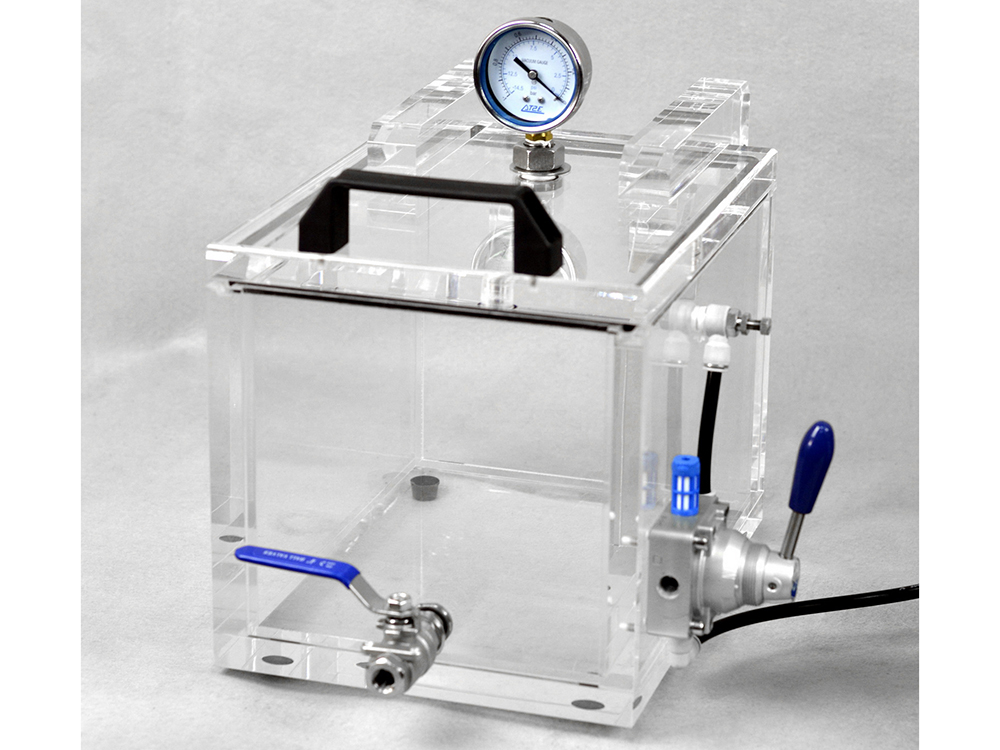

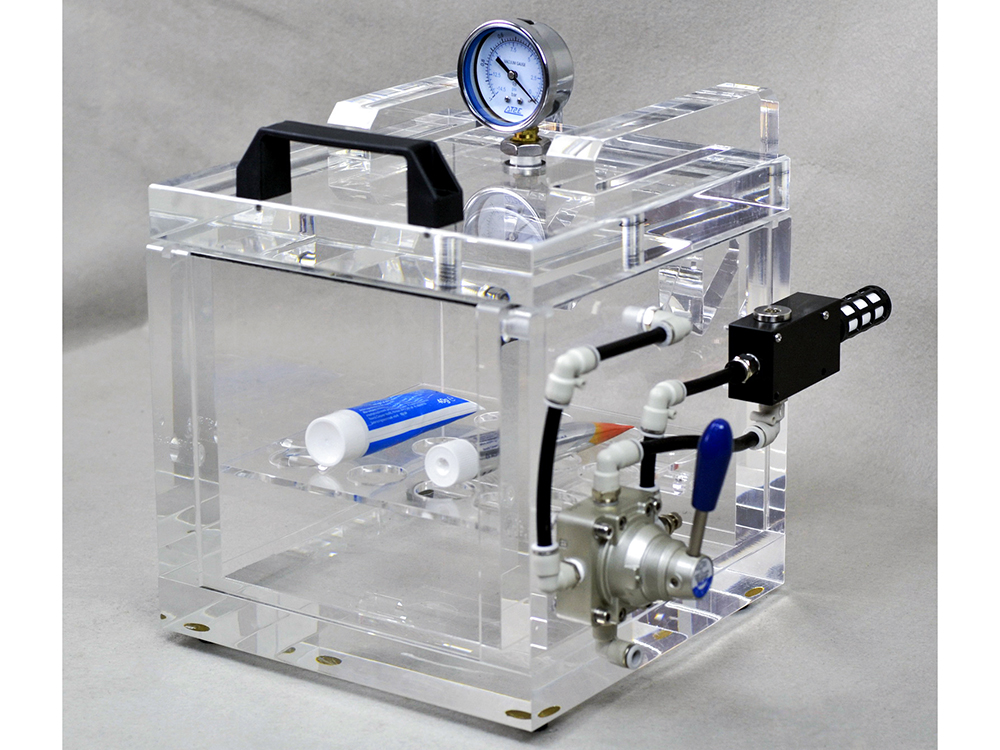

                                                             With Vacuum Generator                                    With Vacuum pump

Tests on:

Bottles: Glass or PET and Preforms

Caps: Aluminium, other metal, plastic

Cans: Aluminium, others

Pots: caps, film, blisters etc.

Specifications:

• Vacuum adjustable up to - 999 mb

• Box with dimensions upon request

• Box made of polished transparent PMMA (very rugged)

• Easy to use and safe

• Equipped with manometer

• Equipped with 3-directions valve for controlling the flow

• Accuracy: 0.5% of the measure

• Equipped with vacuum generator

• Runs with 6 bar network

• Quick and easy of verification and calibration

• Adjustable temporization to keep vacuum or pressure

Optional parts:

• Immersion system

• Shelf structure

• Stainless box

• Pressure or pressure and vacuum model (pressure up to 1 bar)

• Oil-free vacuum pump (vacuum -900 mb)

• High performance pump (vacuum -999 mb)

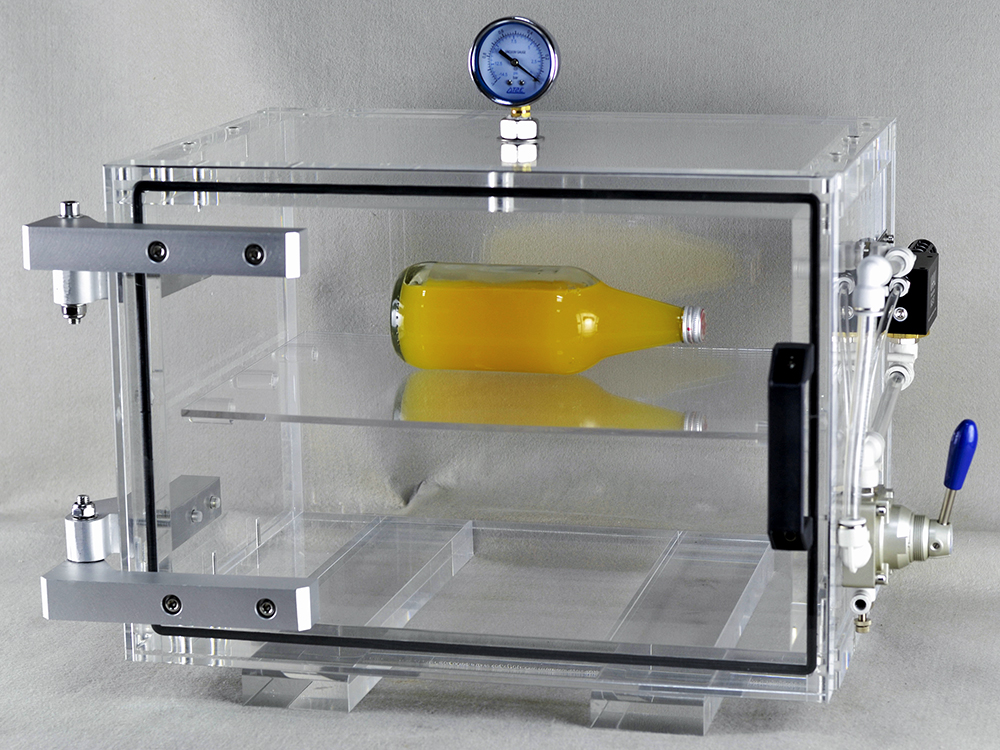

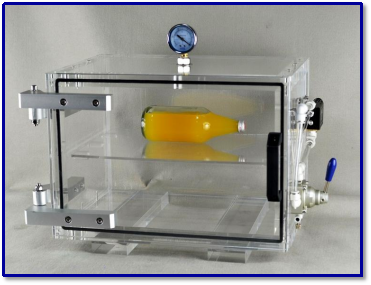

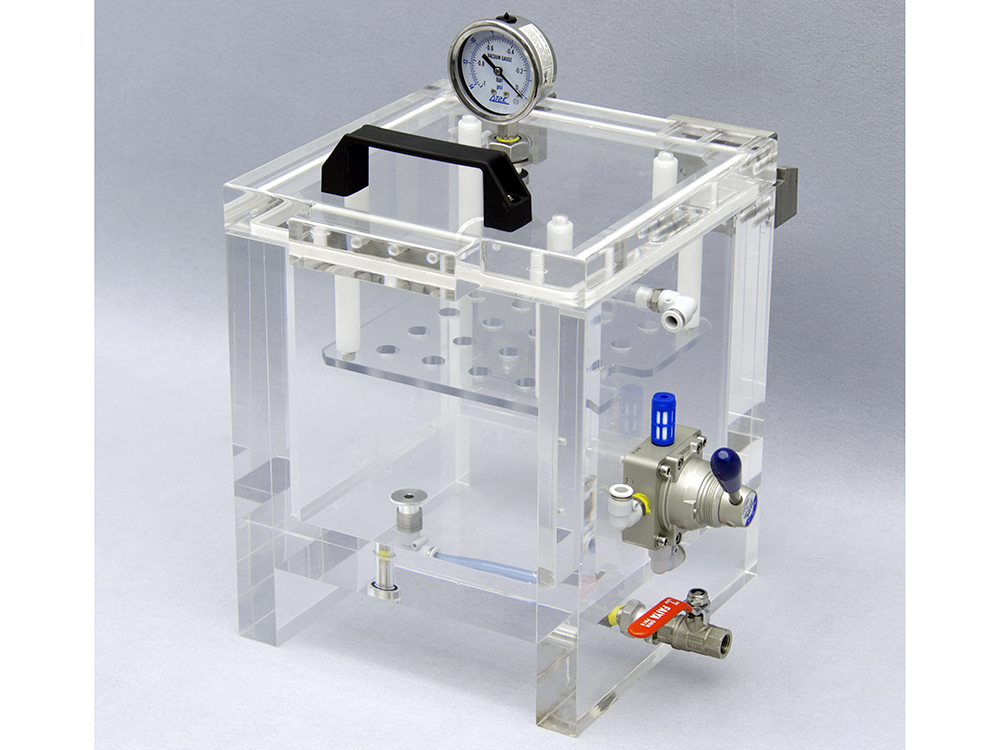

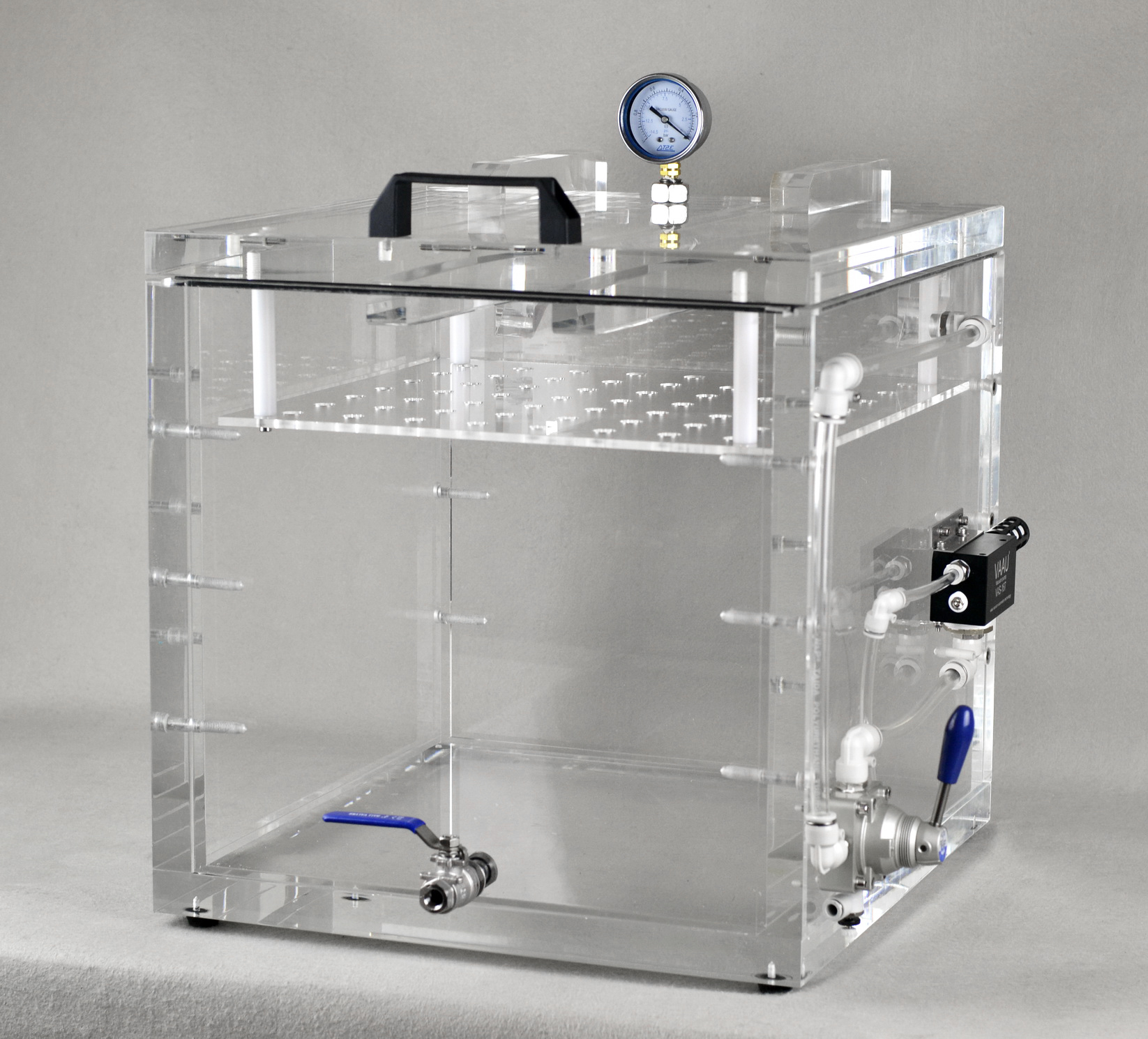

                              VLT-ECO with shelf                                               Round VLT-ECO

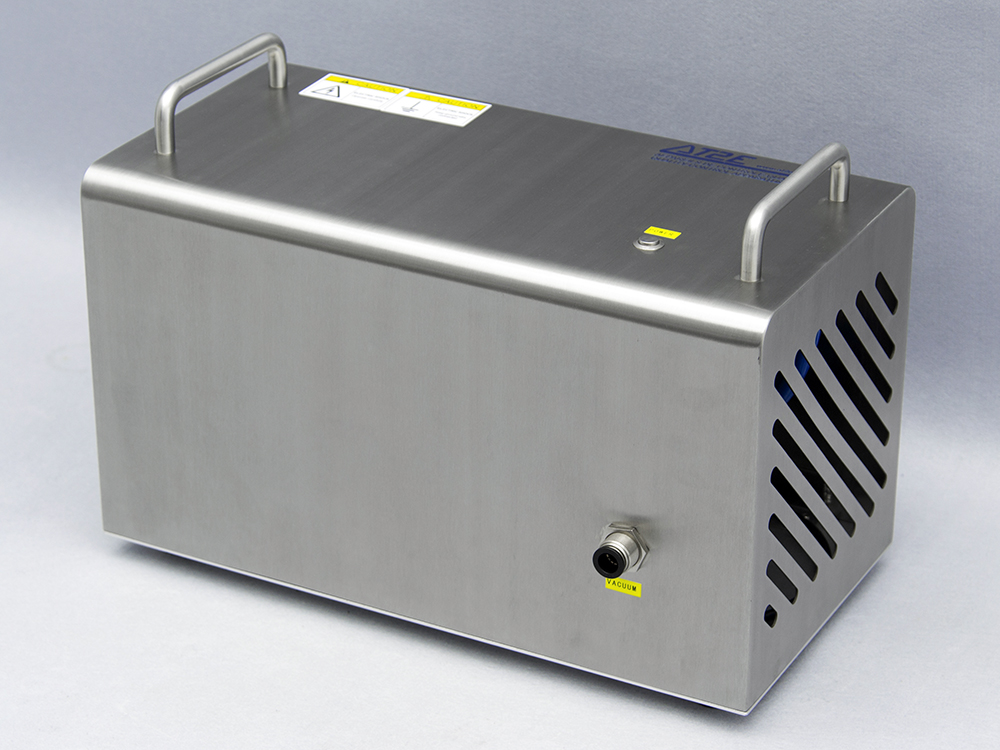

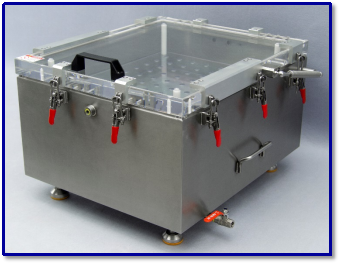

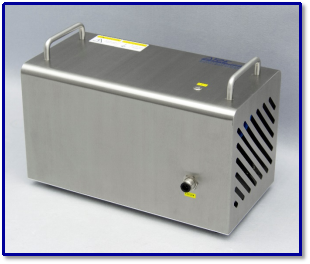

                      Oil-free vacuum pump                                             Stainless box
