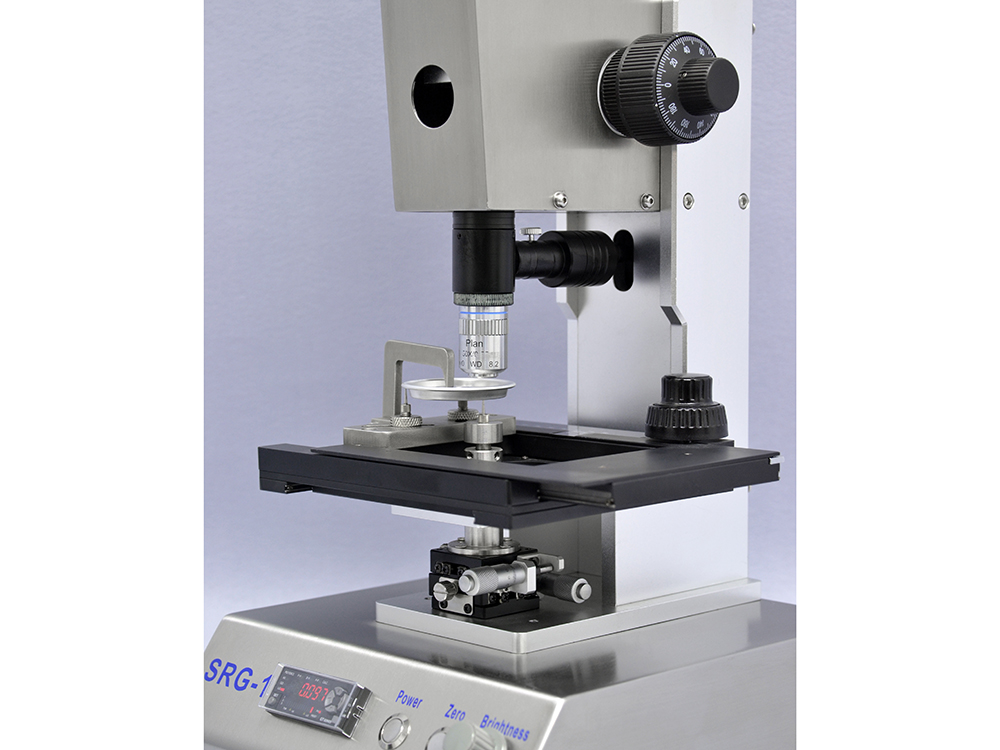

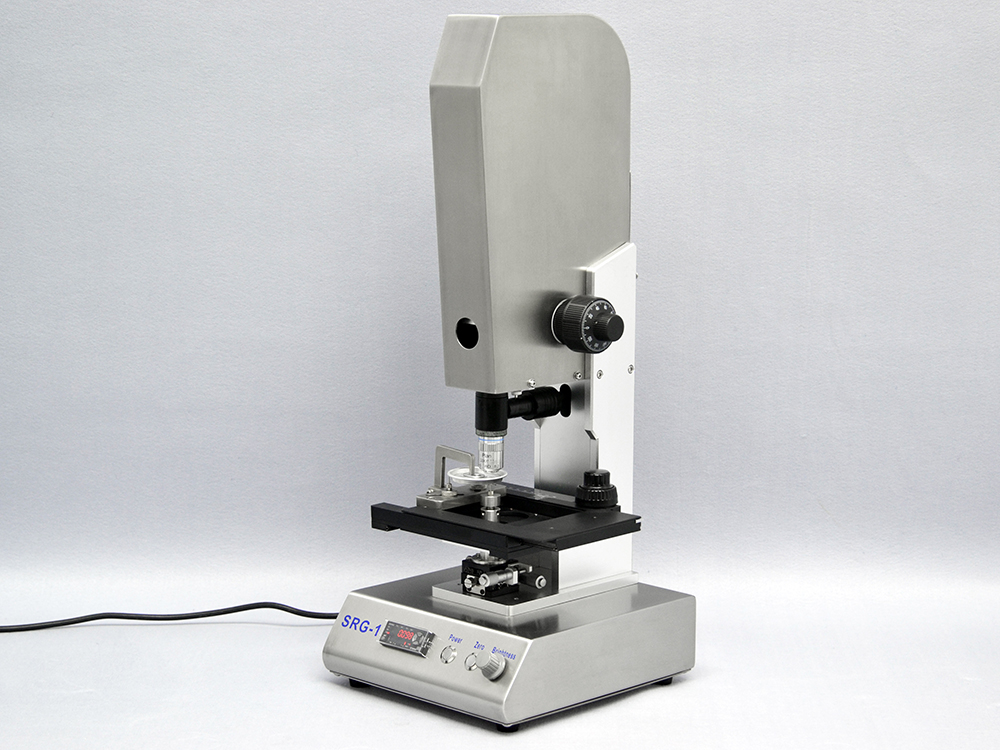

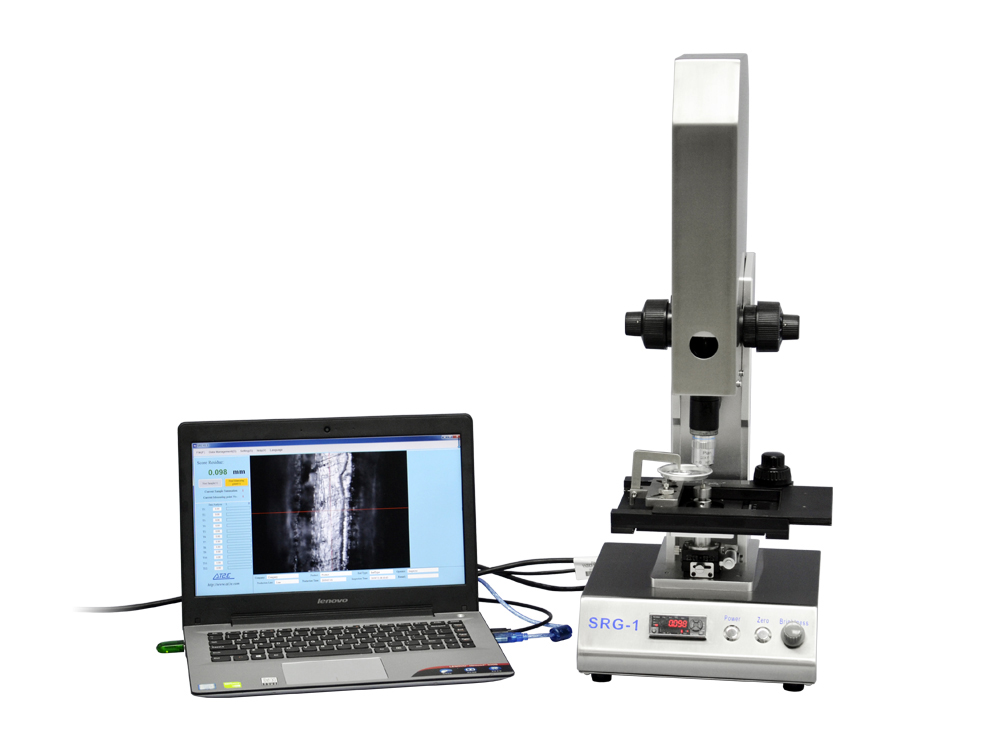

AT2E SRG-1 Score residue gauge is used to measure the score residue of can ends.

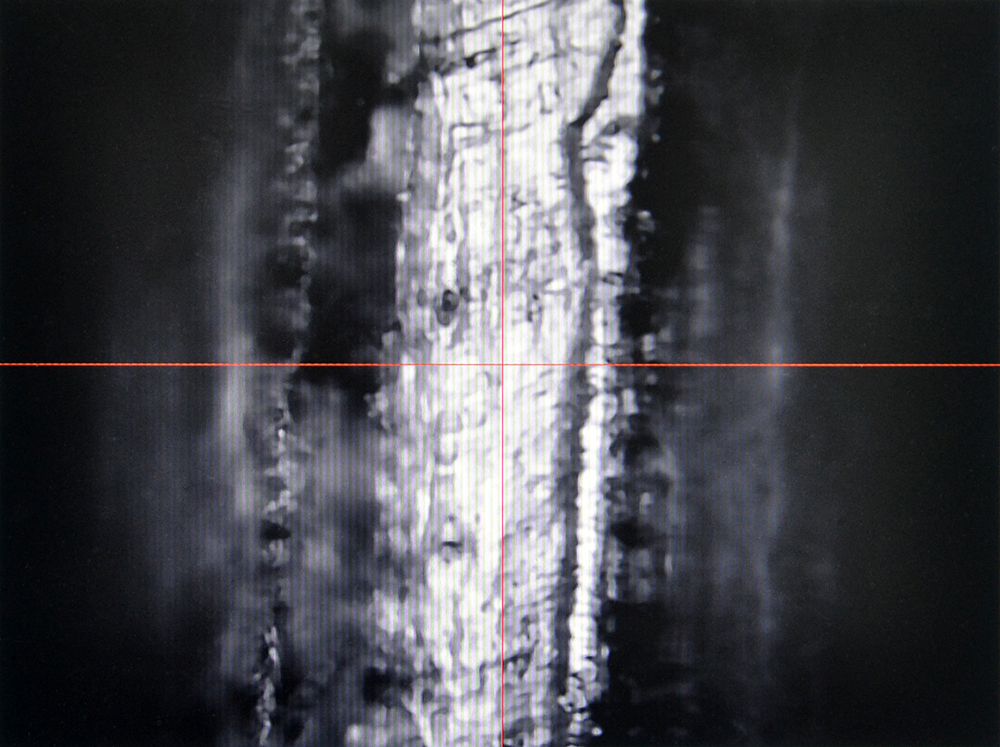

Adopted with the high precision optical components, which ensures the high definition of the score profile images and measure accuracy. Equipped with long working distance lens which is more compatible to different types of end with different score positions.
Applicable for the score measurement of various kinds of can ends. Such as RPT, SOT, EO, etc.
Technical specifications:
Applicable sample type: RPT, SOT, EO
Measure range:0-10mm
Resolution:0.001mm
Reproducibility: 0.002mm

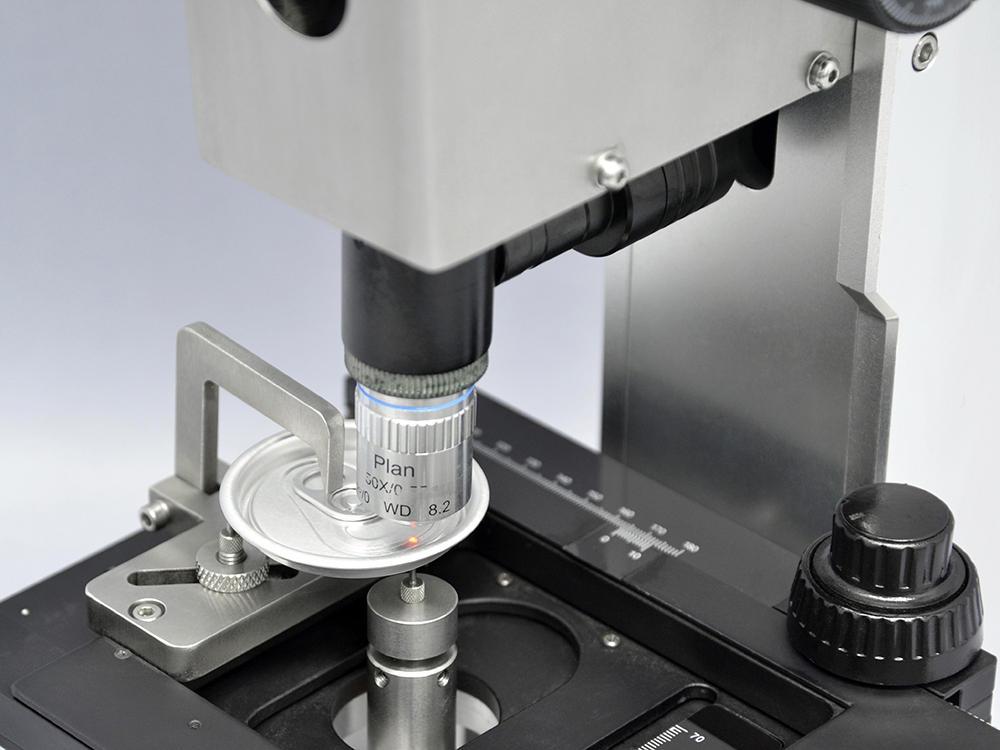

Lens working distance: 8.2mm
Magnification: 1000 X
Size: 280 x 350 x 610 mm
Weight:19kg
