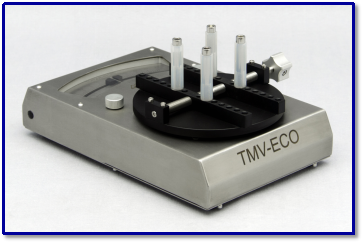

TMV-ECO Spring Torque Tester

Model TMV-ECO is full mechanical mechanism and free of electricity, which makes it more compatible and adaptable to different working environments
Technical specifications:
· Measures opening and closing directions
· Measuring range: 0 to 25 Inch.lbs
· Units: Inch.lbs / N.m
· Accuracy: ± 2 % of full scale
· Delivered with COFRAC calibration certificate
Mechanical specifications:
·
Stainless steel frame
· Choice of measuring table:
Agro (sample range 20 - 155 mm, other range by order)
Cosmetic (sample range 10 - 100 mm, other range by order)
· Dimensions: 330 x 230 x 175 mm
· Weight: 7 kg
Optional parts:
· Easy / Safe opening bloc
· Calibration pack
· Portable case
